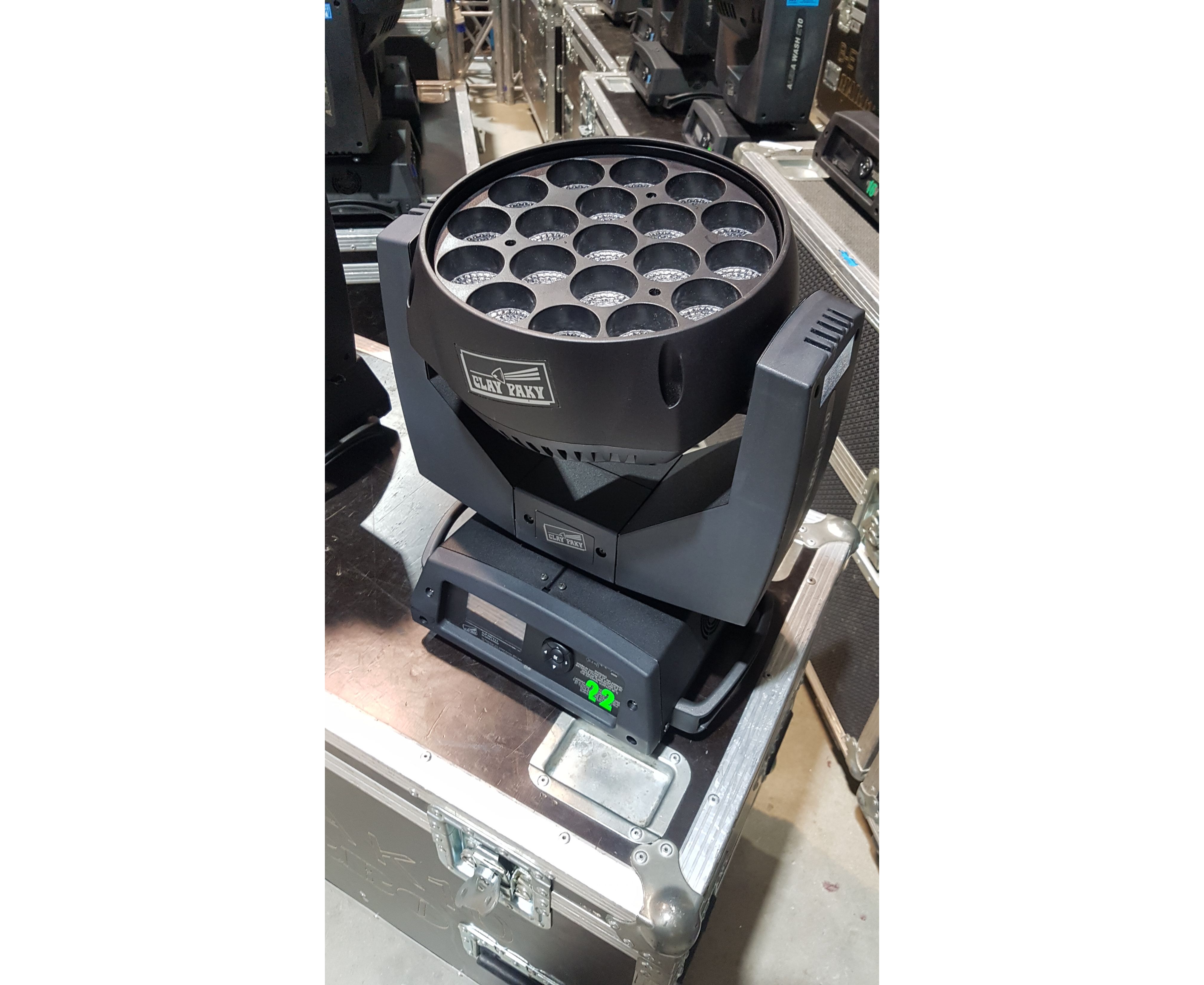

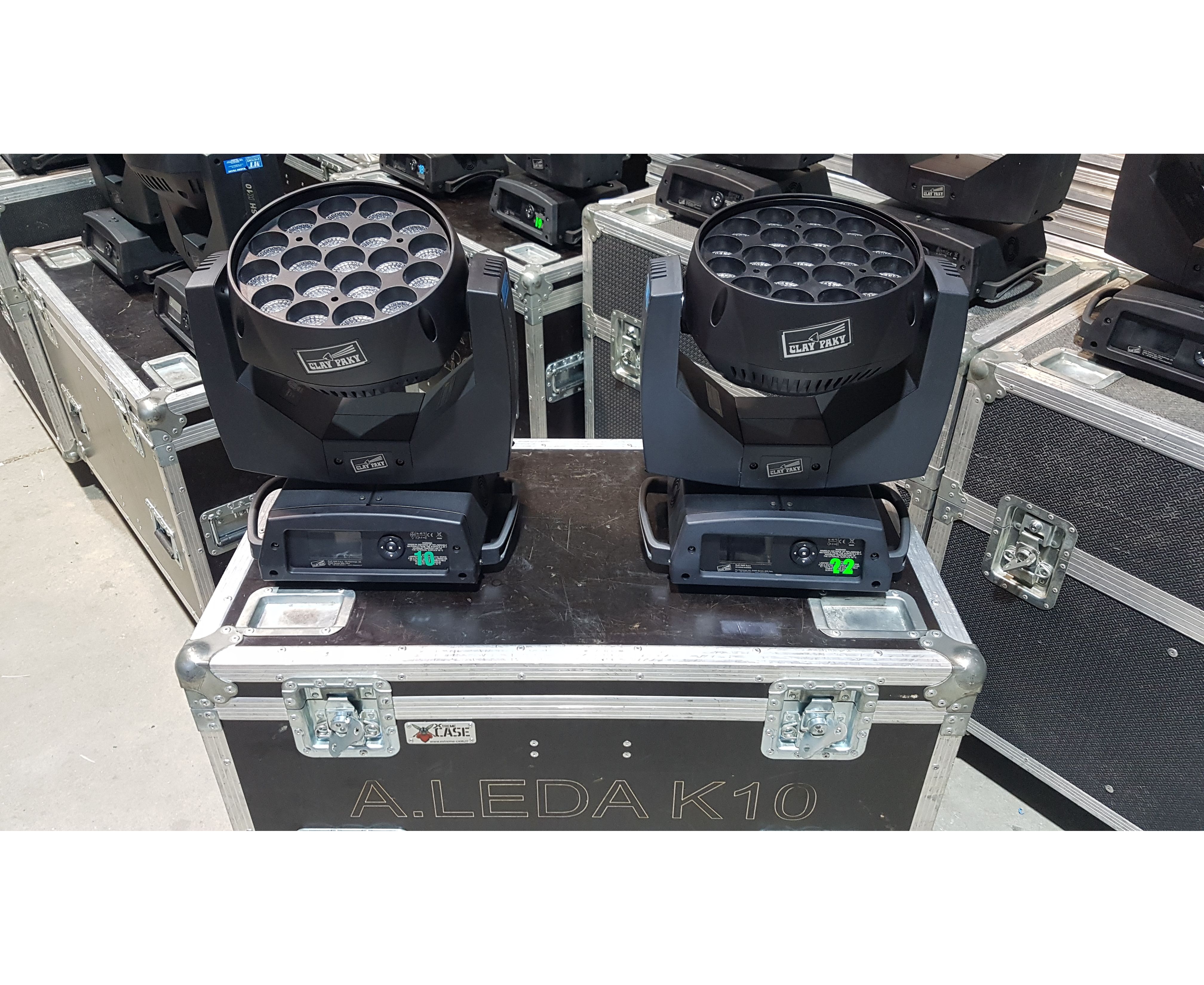

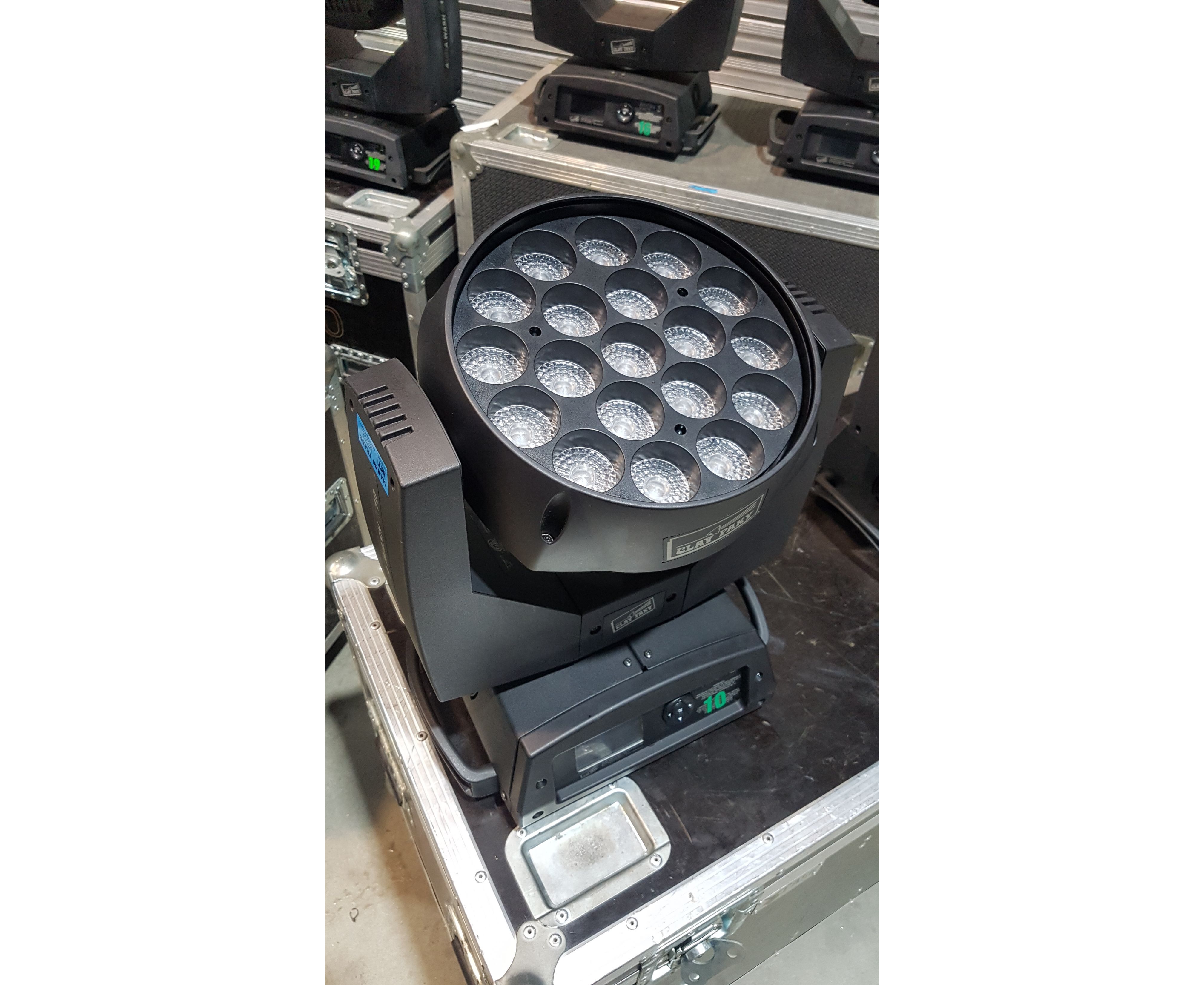

Clay Paky Aleda Wash K10
POWER SUPPLIES
100-240 V 50/60 Hz
INPUT POWER
450 VA
LIGHT SOURCE
19 x 15 W RGBW Ostar Osram LEDs
Average Life: 50,000 h
Total output: 5,500 lumen
OPTICS
14°-70° electronic zoom (8°-55° at 50% of max illumination)
EFFECTS SECTION
Gradual electronic dimmer 0-100%
Adjustable speed stop/strobe effect, with instantaneous blackout
Preset color and graphic effect macros
Dedicated channel for colour temperature setting
CONTROL AND PROGRAMMING
Control channels: 20 basic channels + 57 pixel-mapping channels
protocol signal: USITT DMX 512
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 5 pole XLR input and output
Software upload through DMX input
BODY
Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN lock for transport and maintenance
MOVING BODY
Angle: PAN=540°; TILT=270°
ELECTRONICS
- Long-life auto-charging buffer battery
- Preset color and graphic effect macros
- Function reset controllable from a central control unit
- Menu-driven internal self-test function
- Ethernet ready
- Display: backlit black-and-white graphic LCD display
- Electronic check-up of every single parameter with error alarm
- DMX level monitoring on each channel
- Automatic internal data transmission error diagnostics
- Firmware upgrade even when the unit is not connected to the
- power supply
- Firmware transfer from one light to another
SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
WORKING POSITION
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
ETL
This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
WEIGHT
14 Kg (30.8 lbs)
