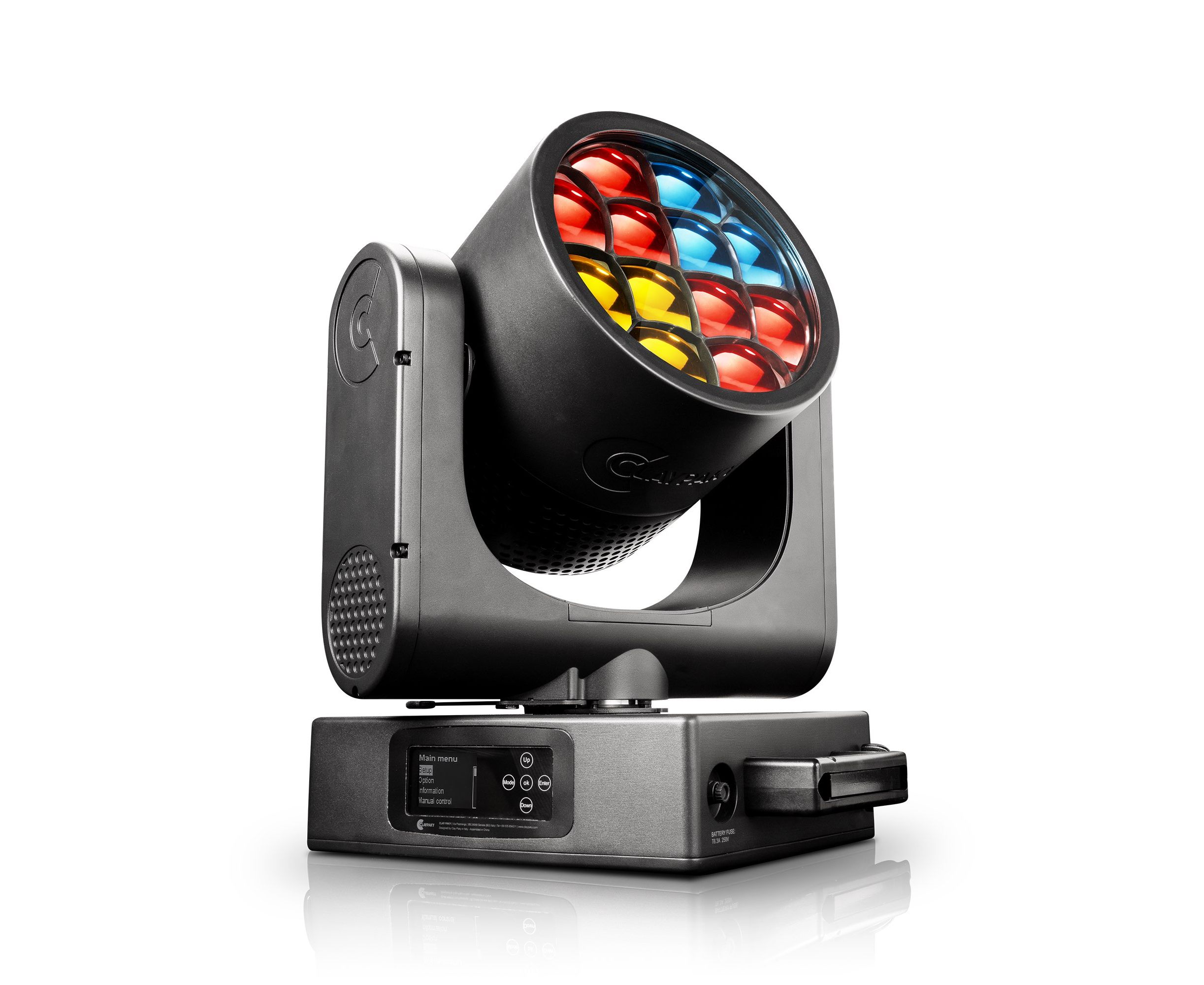

Clay Paky B-Eye 12
Looking for a mid-size wash that anchors the whole rig, theatrical grid, broadcast studio, or festival main stage? The B-EYE 12 is built to be the fixture you design your show around. This 12 x 55W RGBL LED pixel wash moving head packs 12 individually controllable Red, Green, Blue, and Lime sources, full pixel mapping, and IP66 protection built in from the ground up. Its RGBL engine resets what a mid-size wash can deliver: up to 15,200 lm of total output, CRI > 82, richer pastels, and accurate white calibration: color performance no RGBW fixture at this size can match. Rain, temperature swings, or dawn condensation won’t slow it down.
What makes B-EYE 12 stand out:
- The New RGBL Standard: 12 individually controllable RGBL sources deliver up to 15,200 lm of total output with CRI > 82. Richer pastels, accurate whites, and camera-ready color no RGBW mid-size wash can match.
- Pixel Mapping, Endless Motion: Every source is individually addressable for dynamic color chases and split-beam effects, paired with endless Pan & Tilt rotation and an ultra-fast motorized zoom (3.8° to 51.1°) for kinetic looks no fixed-arc fixture can replicate.
- Output That Cuts Through: A high-output RGBL engine delivers authority through haze while holding onto the color accuracy that camera-critical productions require.
- All-Weather by Design: IP66 protection is integral, not retrofitted; a dual-glass front panel with thermal insulation eliminates condensation, and the Sun Safe Protection System auto-repositions the head on signal loss.
- Light Chassis, Fast Deployment: A plastic-and-magnesium-alloy hybrid chassis keeps rigging loads low and load-in fast.
- One Family, Unified Control: Shares its RGBL engine, dimming behavior, and movement architecture with the entire B-EYE family, plus NFC-based setup and diagnostics via the Claypaky App, no power required.
Touring rig, broadcast studio, or year-round architectural install: the B-EYE 12 brings the output, creativity, and consistency every production needs.
Specs
LIGHT SOURCE TYPE
- RGB+L LED
- CRI: >82
- Colour Temperature: 8000K
- Lamp life expectancy: 50.000 hrs
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
- Zoom range: 3,8° to 51,1°
- 15.200 Lumen Output (Integrating Sphere)
- Front lens diameter: ø215,7mm
- High efficiency optical system
NOISE LEVEL
- Silent mode: 36,3 dBA
- Auto mode: 38,2 dBA
- Theatre mode: 34,0 dBA
- Constant mode: 40,9 dBA
CONTROL and CONNECTIONS
- Personalities: 2 modes
- Standard: 30 channels
- Extended: 47 channels
- Pixel engine: 48 channels
- Control Protocol: DMX, Art-Net, RDM, sACN
- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN/OUT
- Power connector: PowerCon True1 IN/OUT
- Built In Web Server
- Fully compatible CloudIO
DYNAMIC EFFECTS
- Colours:
- Built-in macros with enhanced pixel control
- Preset color
- Linear CTO 2500 - 8000K (16bit)
- RGB+L color mixing
- Movement:
- Tilt: Endless
- Pan: Endless
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom
- Dimmer/Shutter:
- High resolution electronic dimmer - 24 bit, 5 curves
HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- Sun safe protection
HOUSING
- Magnesium and steel structure with plastic components
- Two side handles for transportation
- IP66 protection rate
WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 800W (7,9A) @ 100V / 750W (3,1A) @ 240V
THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
SAFETY SPECS
- Minimum distance of illuminated objects 0.2 meters (8”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- Battery fuse: T6.3A 250V
- Main fuse: 10A 250V
COMPLIANCE
- CE: conforms to the European Directives
- UKCA: conforms to UK Regulations
- cMETus Listed
PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell
WEIGHT - SIZE
- 18,5 Kg (40.8 lbs)
- 407x275mm (base dimension) – 480mm with vertical head (h)
- Distance between two fixtures 400mm
ACCESSORIES
- Omega clamps: 2x183102/805 (included)
- Power cord: CAB02B/802 (included)
- Flight case: CF53 (optional)
- Flight case + foam shell (4 positions): CF1053F (optional)
- Safety Chain: 105041/003 (optional)
- Clamp: C21070 (optional)
