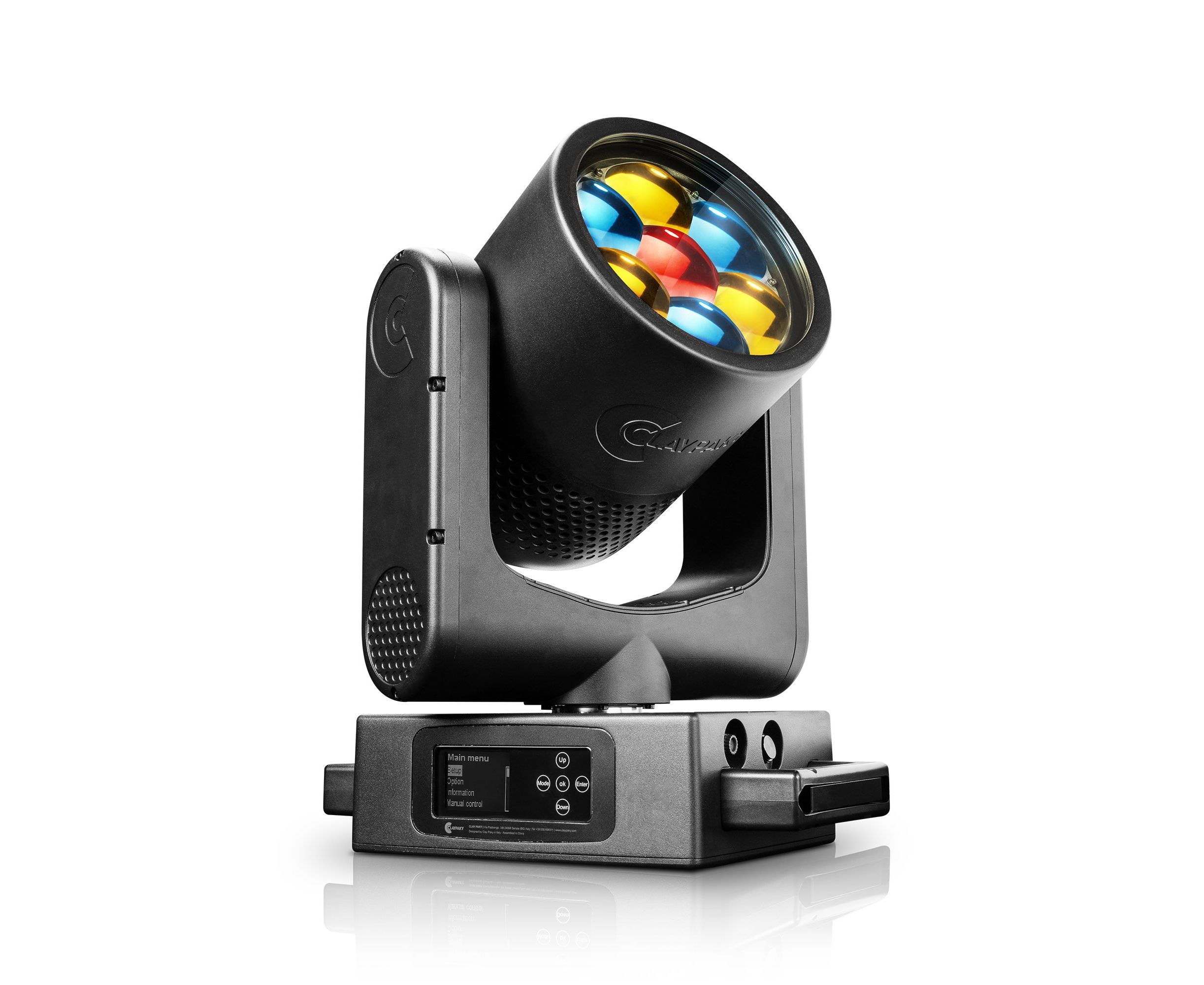

Clay Paky B-Eye 7
Need a compact wash that moves as fast as your show, creatively maps pixels, and shrugs off outdoor weather? The B-EYE 7 is Claypaky’s answer. This ultra-compact RGBL LED moving head packs 7 individually controllable pixels, endless Pan & Tilt rotation, and full IP66 protection into the smallest B-EYE footprint. At its core is a groundbreaking 7 x 55W RGBL color engine (Red, Green, Blue, and Lime) delivering up to 7,700 lm of total output with CRI greater than 82, richer pastels, and camera-accurate color. Whether you’re rigging a dense EDM stage, a time-coded broadcast set, or a festival truss line, the B-EYE 7 reacts instantly and never runs out of creative range.
Why You’ll Love B-EYE 7:
- Compact Power, Zero Compromise: Delivering 7,700 lm total output from 7 individually controllable RGBL sources, the compact fixture is built on a lightweight plastic-and-magnesium alloy hybrid frame.
- Speed Without Limits: An ultra-fast motorized zoom (4.0° to 45.4°) and endless Pan & Tilt rotation enable instant transitions and continuous spinning effects.
- Pixel Mapping, Anywhere: Every RGBL source is individually addressable, unlocking dynamic color chases, split-beam looks, and video-style content across pod clusters, truss lines, or grid arrays.
- RGBL Color Engine: The Lime emitter boosts luminous output while improving color accuracy. CRI > 82, richer pastels, and camera-ready white calibration for broadcast and live events.
- IP66-Rated, Built Tough: A dual-glass front panel with thermal insulation prevents condensation, while the Sun Safe Protection System auto-repositions the head on signal loss to protect the optics outdoors.
- One Ecosystem, Unified Control: Shares its color platform and calibration logic with the entire B-EYE family, and pairs with the Claypaky App for NFC-based setup and diagnostics, no power connection required.
From dense EDM rigs to broadcast studios and rental fleets, the B-EYE 7 brings professional-grade creative power indoors & outdoors, packed inside a compact IP66-rated body. Ready to see it perform live? Contact us today and let’s bring the B-EYE 7 to your next show.
Specs
LIGHT SOURCE TYPE
- RGB+L LED
- CRI: >82
- Colour Temperature: 8000K
- Lamp life expectancy: 50.000 hrs
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
- Zoom range: 4.0° to 45,4°
- 7700 Lumen Output (Integrating Sphere)
- Front lens diameter: ø177mm
- High efficiency optical system
NOISE LEVEL
- Silent mode: 32.9 dBA
- Auto mode: 37.3 dBA
- Theatre mode: 26.9 dBA
- Constant mode: 43.9 dBA
CONTROL and CONNECTIONS
- Personalities: 2 modes
- Standard: 30 channels
- Extended: 47 channels
- Pixel engine: 28 channels
- Control Protocol: DMX, Art-Net, RDM, sACN
- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN/OUT
- Power connector: PowerCon True1 IN/OUT
- Built In Web Server
- Fully compatible CloudIO
DYNAMIC EFFECTS
- Colours:
- Built-in macros with enhanced pixel control
- Preset colors
- Linear CTO 2500 - 8000K (16 bit)
- RGB+L color mixing
- Movement:
- Tilt: Endless
- Pan: Endless
- Automatic repositioning
- Dimmer/Shutter:
- High resolution electronic dimmer 24 bit, 5 curves
HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- Sun safe protection
HOUSING
- Magnesium and steel structure with plastic components
- Two side handles for transportation
- IP66 protection rate
WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 500W (4,9A) @ 100V / 480W (2,0A) @ 240V
THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
SAFETY SPECS
- Minimum distance of illuminated objects 0,2 meters (8”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- Battery fuse: T6.3A 250V
- Main fuse: 10A 250V
COMPLIANCE
- CE: conforms to the European Directives
- UKCA: conforms to UK Regulations
- cMETus Listed
PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell
WEIGHT - SIZE
- 12 Kg (26.5 lbs)
- 343x204mm (base dimension) – 460mm with vertical head (h)
- Distance between two fixtures 340mm
ACCESSORIES
- Omega clamps: 2x183102/805 (included)
- Power cord: CAB02B/802 (included)
- Flight case: CF1056 (optional)
- Flight case + foam shell (4 positions): CF1056F (optional)
- Safety Chain: 105041/001 (optional)
- Clamp: C21070 (optional)
