Clay Paky B-Eye K30

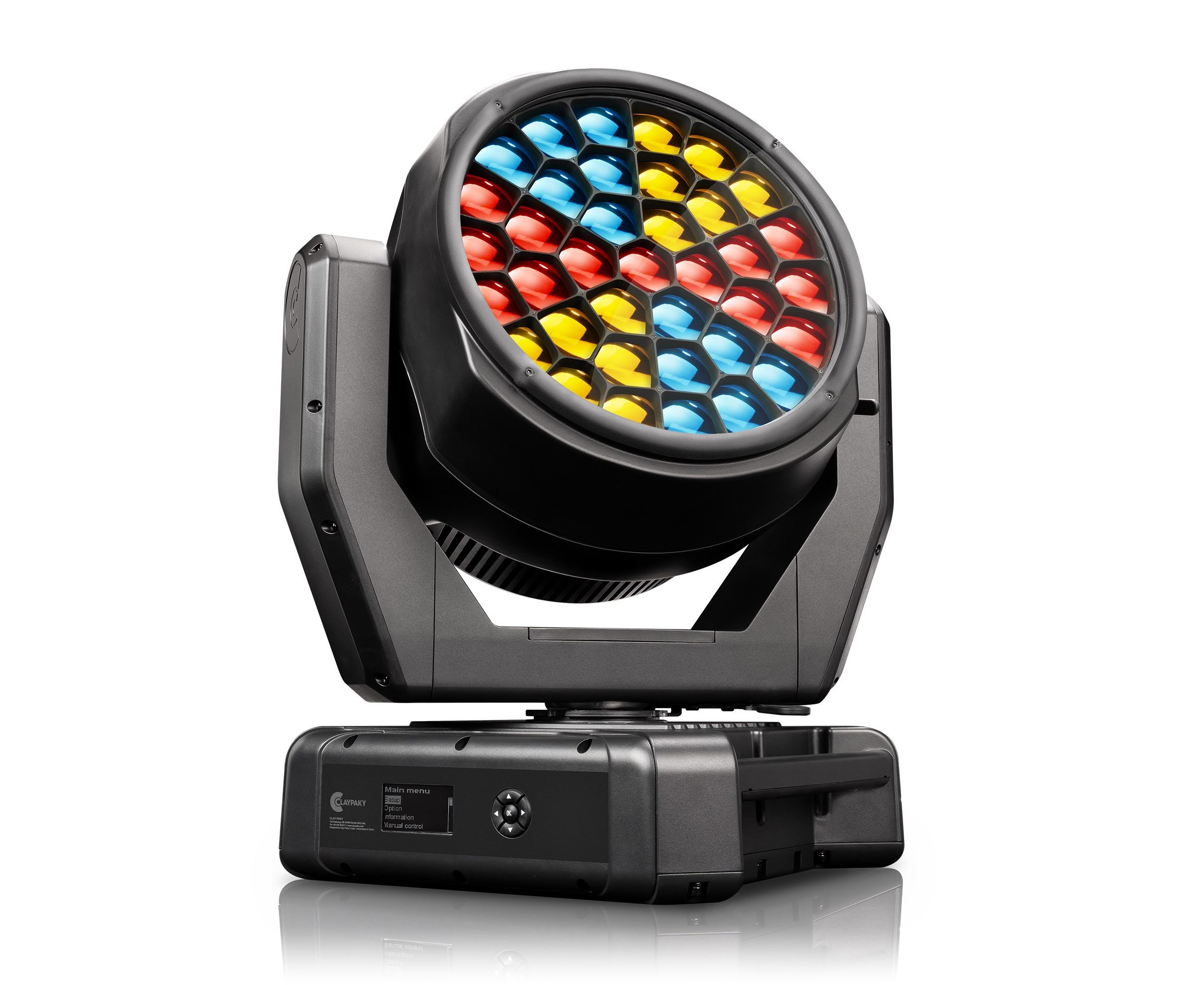

Need a single fixture that runs wash, beam, and Kaleidoscopic effects without additional hardware? The B-EYE K30 is the complete re-engineering of Claypaky’s flagship multilens concept. This large-format 37 x 55W RGBL moving head packs 37 individually driven LEDs, a 3.7°–54.5° motorized zoom, and IP66 protection throughout, with endless Pan rotation and a Tilt safety brake for total reliability. Its RGBL engine marks one of the biggest performance leaps in B-EYE history: higher lumen output, CRI > 82, richer pastels, and camera-ready color, fully consistent across the whole B-EYE ecosystem. From large-scale touring to outdoor festivals and permanent installations, the K30 is built to drive the whole show.
Highlights that set B-EYE K30 apart:
- Three Fixtures in One: Seamlessly switch between wash (3.7°–54.5° zoom), beam (long-throw punch), and Kaleidoscopic FX (Advanced Layers Management and pixel control with lens rotation), no need to choose.
- The Leap Forward in Color: 37 individually driven RGBL sources deliver higher lumen output, CRI > 82, richer pastels, and improved white calibration for standout broadcast performance.

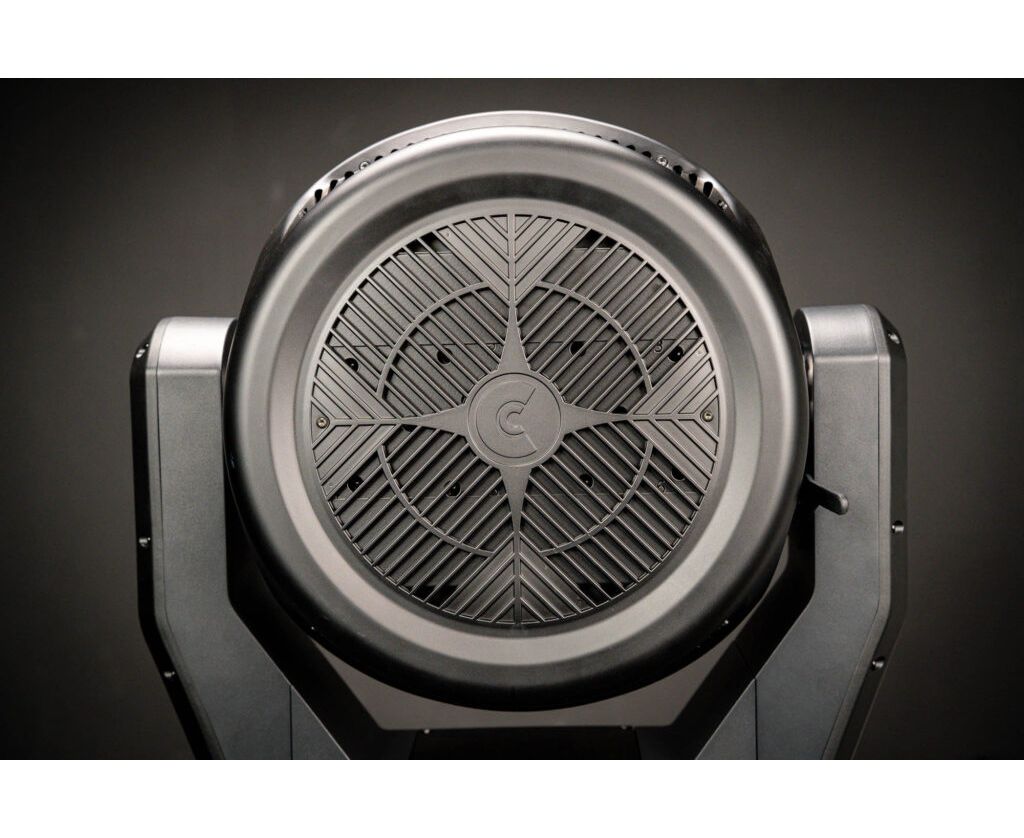

- Built to Perform, Simple to Maintain: Individual heat pipes on every LED protect output consistency, a stepper motor-driven zoom replaces the K25’s linear actuator for more precise control, and driver boards are accessible in fewer than 20 screws.
- IP66 Without Compromise: an active defogging system keeps the front glass clear, and the SunSafe Protection System auto-repositions the head on signal loss.
- Freedom of Motion: Endless Pan rotation and a dedicated Tilt safety brake unlock infinite rotational looks, from slow aerial arcs to fast rhythmic spins, with the head held securely after power-down.
- One Proven Platform: Shares its color engine and control logic across the entire B-EYE family for unified programming from show to show.
The B-EYE K30 is the new reference wash light built for large-scale touring, outdoor festivals, and permanent installations where reliability and performance are both non-negotiable. Ready to see it drive your next show?
Specs
LIGHT SOURCE TYPE
- RGB+L LED
- CRI: >82
- Color Temperature: 8000K
- Lamp life expectancy: 50.000 hrs
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
- Zoom range: 3,7° to 54,5°
- 28.000 Lumen Output
- Front lens diameter: ø330mm
- High efficiency optical system
NOISE LEVEL
- Auto mode: Variable noise / 100% Output
- Full mode: 46.0 dBA / 100% Output
- Medium mode: 42.0 dBA / 85% Output
- Silent mode: 37.0 dBA / 65% Output
- Ultra Silent mode: 29.0 dBA / 35% Output
CONTROL and CONNECTIONS
- Personalities: 2 modes:
- Standard: 30 channnels
- Extended: 47 channels
- Pixel engine: 148 channels
- Control Protocol: DMX, Art-Net, RDM, sACN, CRMX (Timo FX) (Lumen Radio)

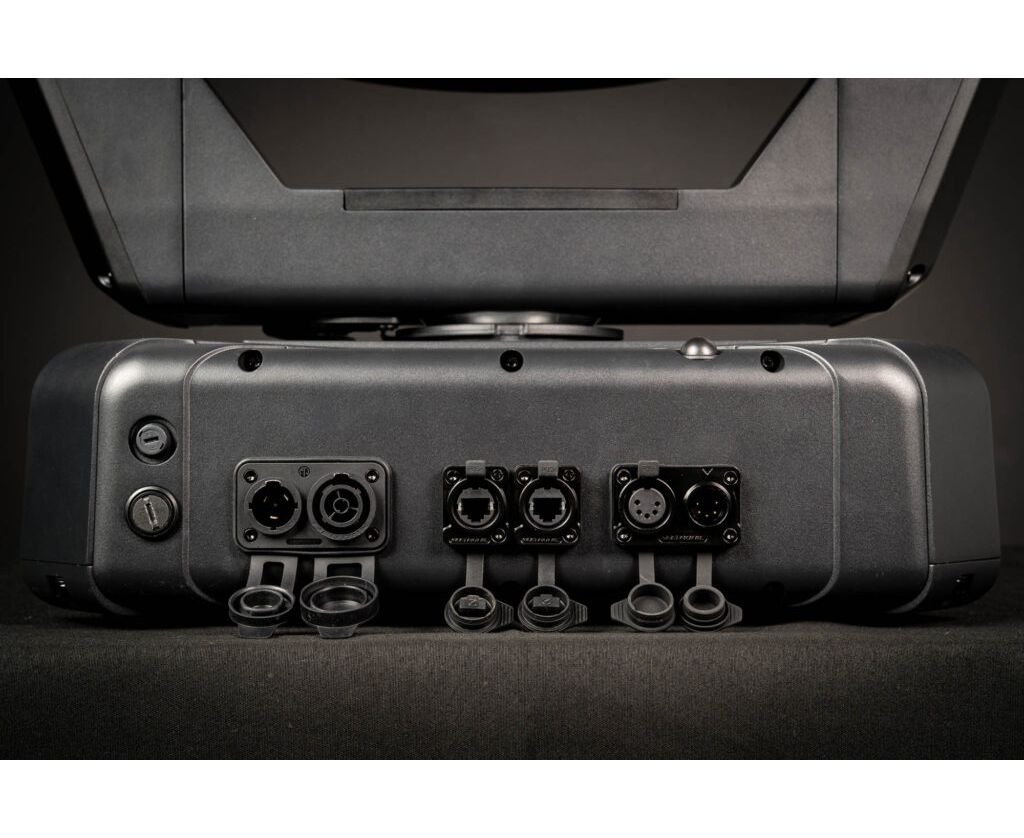

- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN/OUT
- Power connector: PowerCon True1 IN/OUT
- Built In Web Server
- Fully compatible CloudIO
DYNAMIC EFFECTS
- Colors:
- Built-in macros with enhanced pixel control
- Preset colors
- Linear CTO 2500-8000K (16 bit)

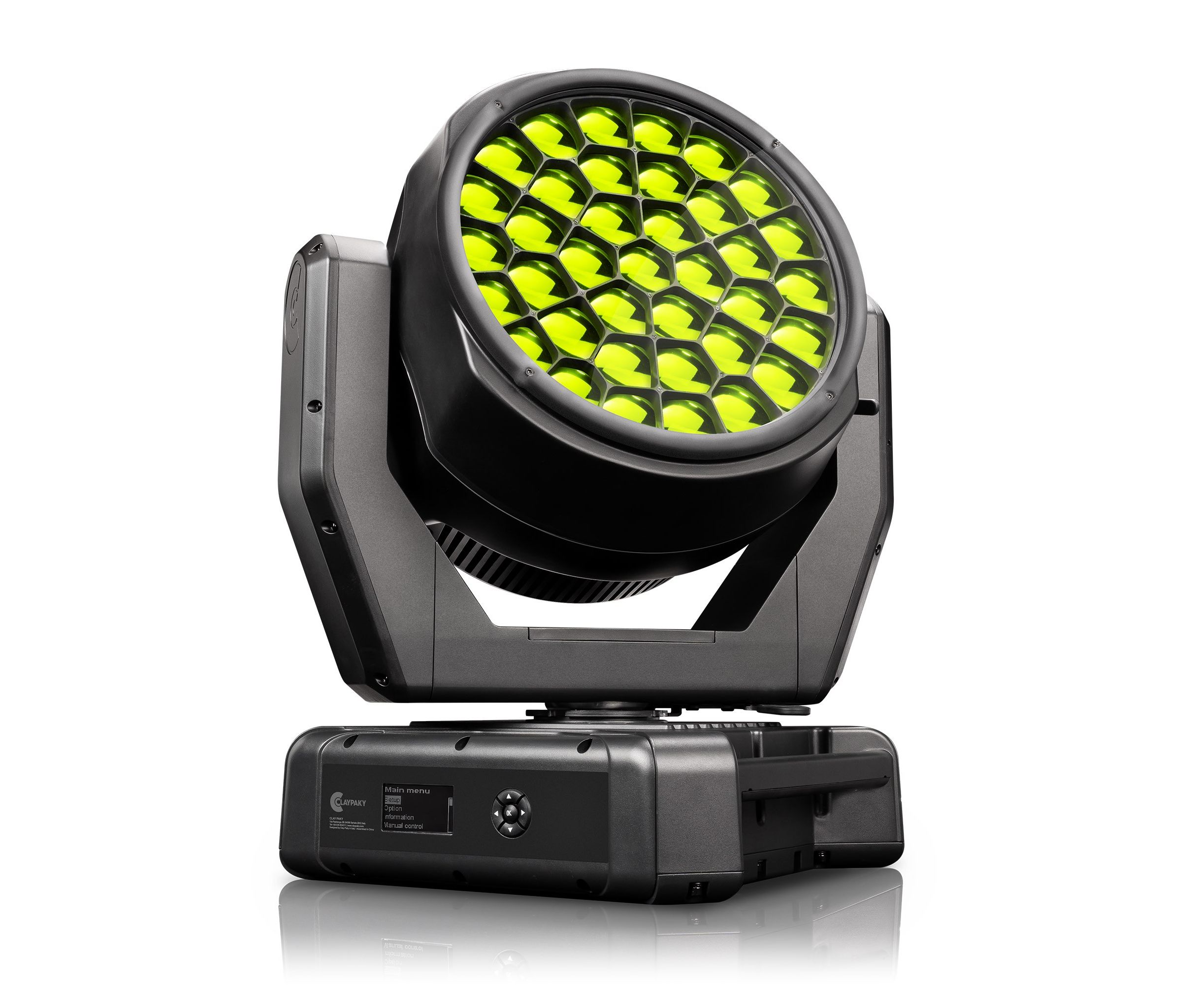

- RGB+L color mixing
- Rotating Effects:
- Bi-directional rotating front lenses
- Movement:
- Tilt: 230°
- Pan: Endless / 540° Electronic rotation
- Automatic repositioning
- Tilt brake
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom
- Dimmer/Shutter:
- High resolution electronic dimmer - 24 bit, 5 curves
HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- Sun safe protection
HOUSING
- Magnesium and steel structure with plastic components
- Two side handles for transportation
- IP66 protection rate
WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 1700W (16.0A) @ 100V / 1700W (8.0A) @ 240V
THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 5850 BTU/hr ±10% / 6150 kJ/hr ±10%
SAFETY SPECS
- Minimum distance of illuminated objects 5 meters (16’ 5”)
- Minimum distance from flammable materials 0.3 meters (1')
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- Battery fuse: T6.3A 250V
- Main fuse: 20A 250V
COMPLIANCE
- CE: conforms to the European Directives
- UKCA: conforms to UK Regulations
- cMETus Listed
PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell
WEIGHT - SIZE
- 37,6 Kg (82.9 lbs)
- 430x400mm (base dimension) – 609mm with vertical head (h)
- Distance between two fixtures 560mm
ACCESSORIES
- Omega clamps: 2x183102/805 (included)
- Power cord: CAB02B/802 (included)
- Flight case: CF1054 (optional)
- Flight case + foam shell (2 positions): CF1054F (optional)
- Safety Chain: 105041/001 (optional)
- Clamp: C21070 (optional)
