With six independent SFP ports supporting 1 Gbps data transfer and 24, 1 Gbps copper ports, the GigaCore S30-I offers an ample port count. Paired with Araneo, the GigaCore S30-I enables one-click AV network deployment for fixed installations.
Like all GigaCore models, it is designed to natively support the most advanced AV protocols, serving as the basis for a converged network and enabling multiple applications to coexist seamlessly on the same network.
GigaCore offers a reliable, user-friendly platform to transport light, audio, and video IP protocols without IT configuration. Time synchronization is critical in many applications. The GigaCore S30-I is a PTPv2-enabled switch that supports most major audio protocols (e.g., RAVENNA/AES67, Milan AVB, ST 2110, Dante, Q-SYS/Q-LAN) without requiring complex device configuration.
Key Features
- Most suitable applications: System integrations, Installs
- PoE: PoE+ Optional (up to 300W)
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes
- Profile manager: Yes
- Memory: 1 GB RAM – 8 MB NOR flash 4 GB EMMC storage
- MAC address table: 16384 entries
- Address learning / Aging: Self learning, Auto aging
- Switching throughput 64 Byte: 44,4Mpps
- Switching capacity: 60Gbps
- Jumbo frames: MTU up to 120000
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation
- Auto crossover: MDI / MDIX
- Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
Conectivity

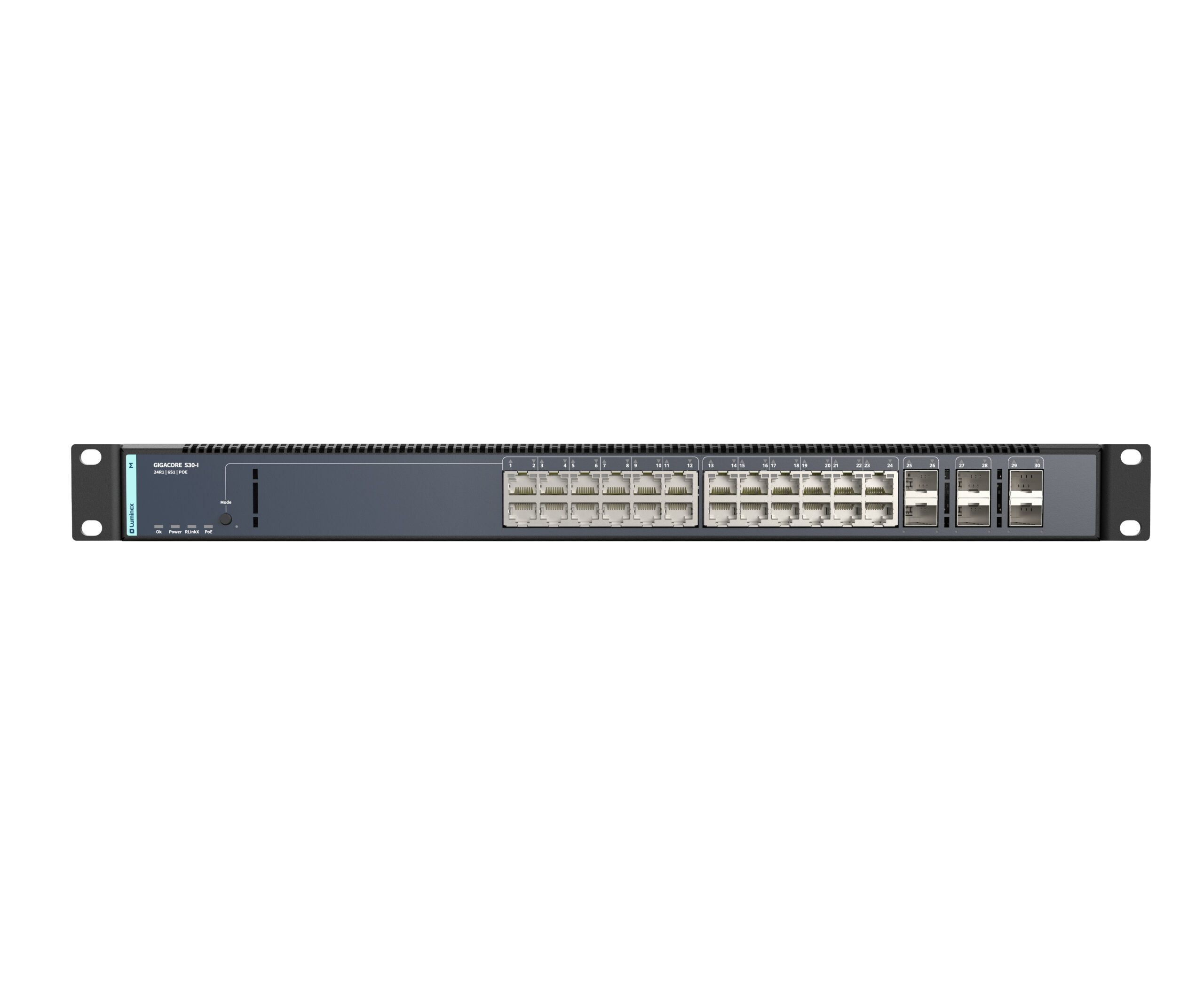

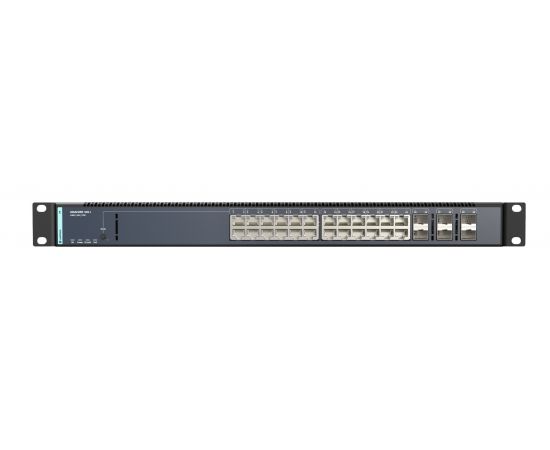

- Ethernet connectivity: 24x Gigabit (10/100/1000 BASE-T) copper RJ45 on front panel
- Fiber connectivity: 6x 1 Gbps SFP cages on front panel, independent from other ports
- Ethernet port speed: NA
- Serial: No
Power

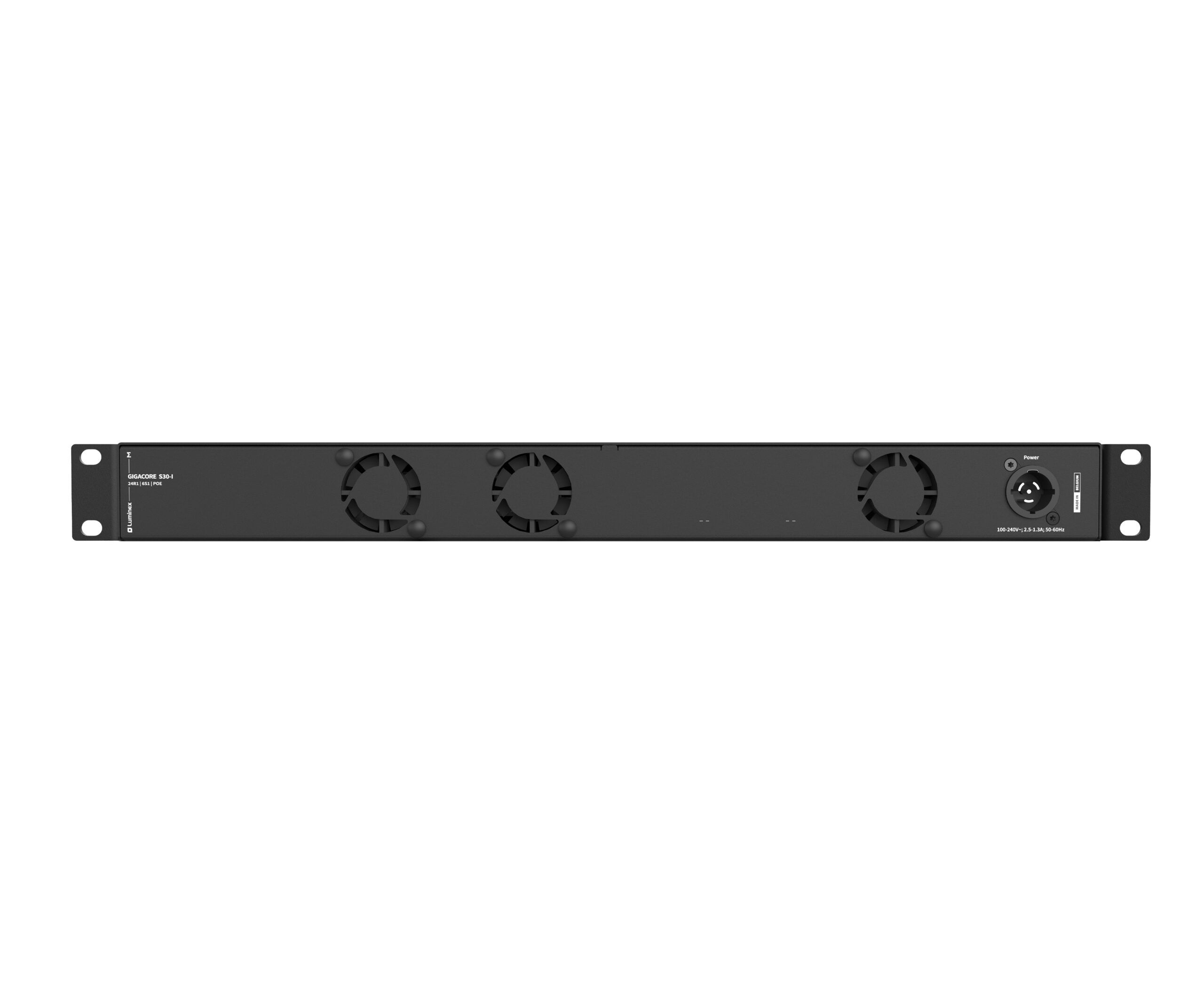

- Power connectivity: 1x PowerCON True1 in
- Power input: 100-240VAC, 50-60Hz
- Power consumption: TBC
- Fuse: NA
- Backup power input: NA
- Backup PoE power input: NA
- PoE: PoE+ Optional (up to 300W)
Protocols
- Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), IEEE 1588 PTP V2, MILAN AVB, IEEE 802.1as (gPTP) and more...
- Sound protocol compliance: Yes (low jitter)
- Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.1ax, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1Qav MVRP, IEEE 802.1 BA-2011 AVB (Audio Video Bridging) IEEE 802.1ab LLDP, IEEE 1588-2008 PTPv2, IETF RFC2710, IETF RFC3810
Modele
- GigaCore S30-I-24R1-6S1 LU 01 00106-1G-PoE
- GigaCore S30-I-24R1-6S1-POE
