Luminex LumiNode 4 DIN RJ45

Solicita detalii
LU 01 00082-RJ45
4,522.00 Lei
Disponibilitate: 2 Produs(e)
Termen de livrare:
  • - Va fi comunicat la primirea comenzii
  • - Will be communicated when the order is received
The LumiNode family is fully DMX/RDM compatible.
LumiNet Monitor and other third party RDM software or lighting consoles (supporting ArtNet RDM) can make use of the full RDM functionality.
DMX/RDM connectivity:4 x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
4x 3-pin pluggable terminal block
Ethernet connectivity: 2 x gigabit RJ45
Contact closure: Yes
Power connectivity:1x 3-pin pluggable terminal block
Ethernet (PoE 802.3af class 0)

  • Pune o întrebare

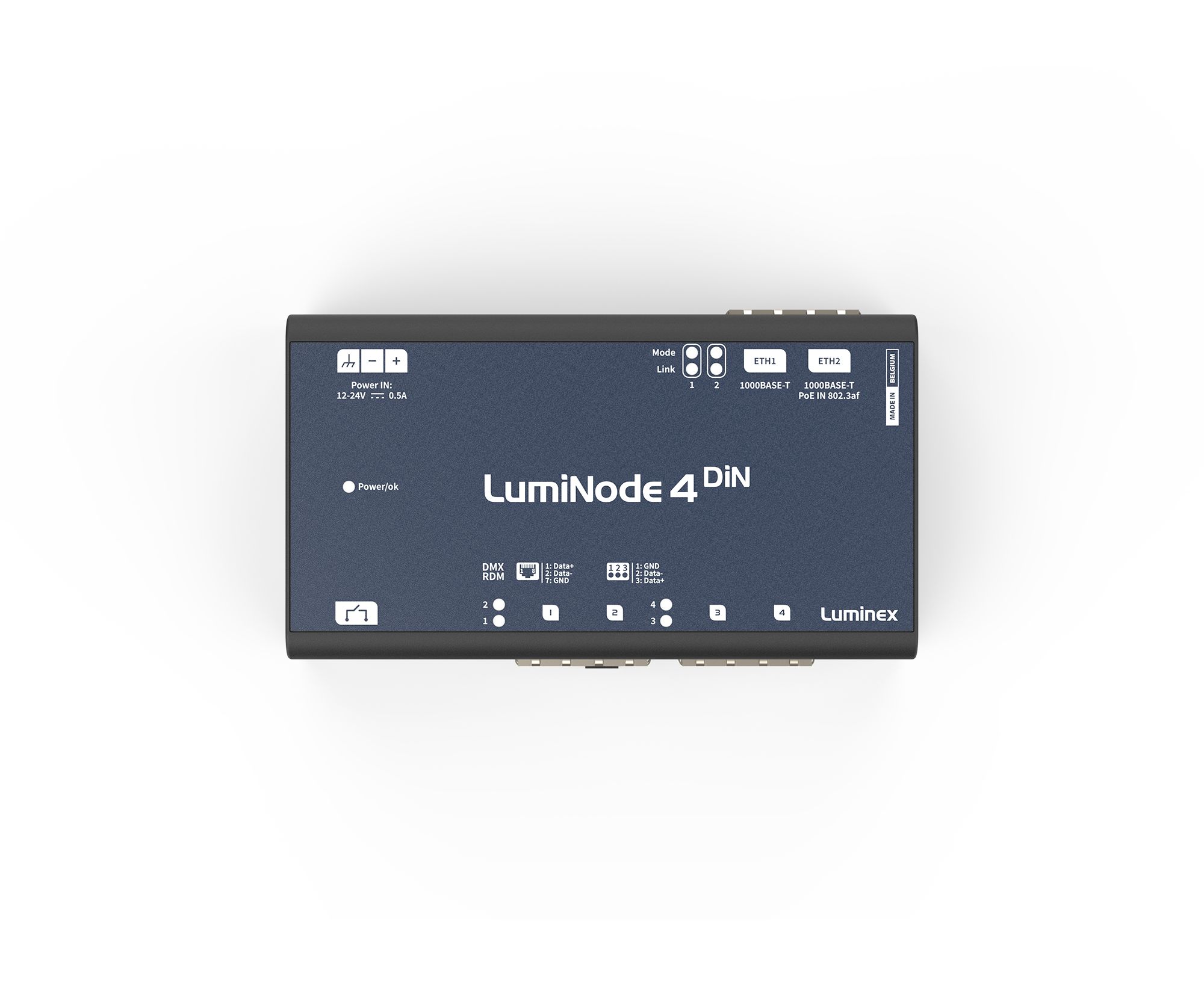

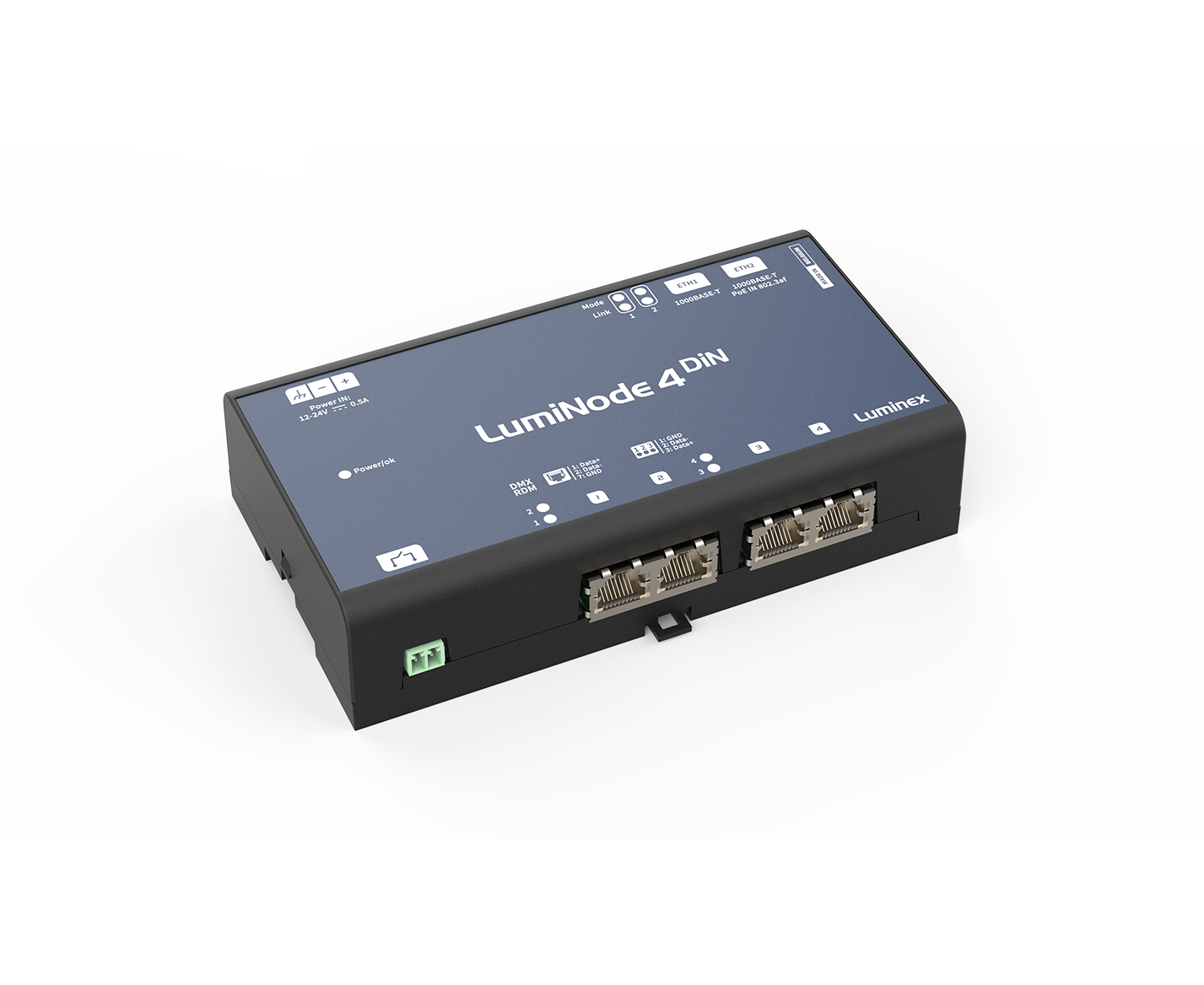

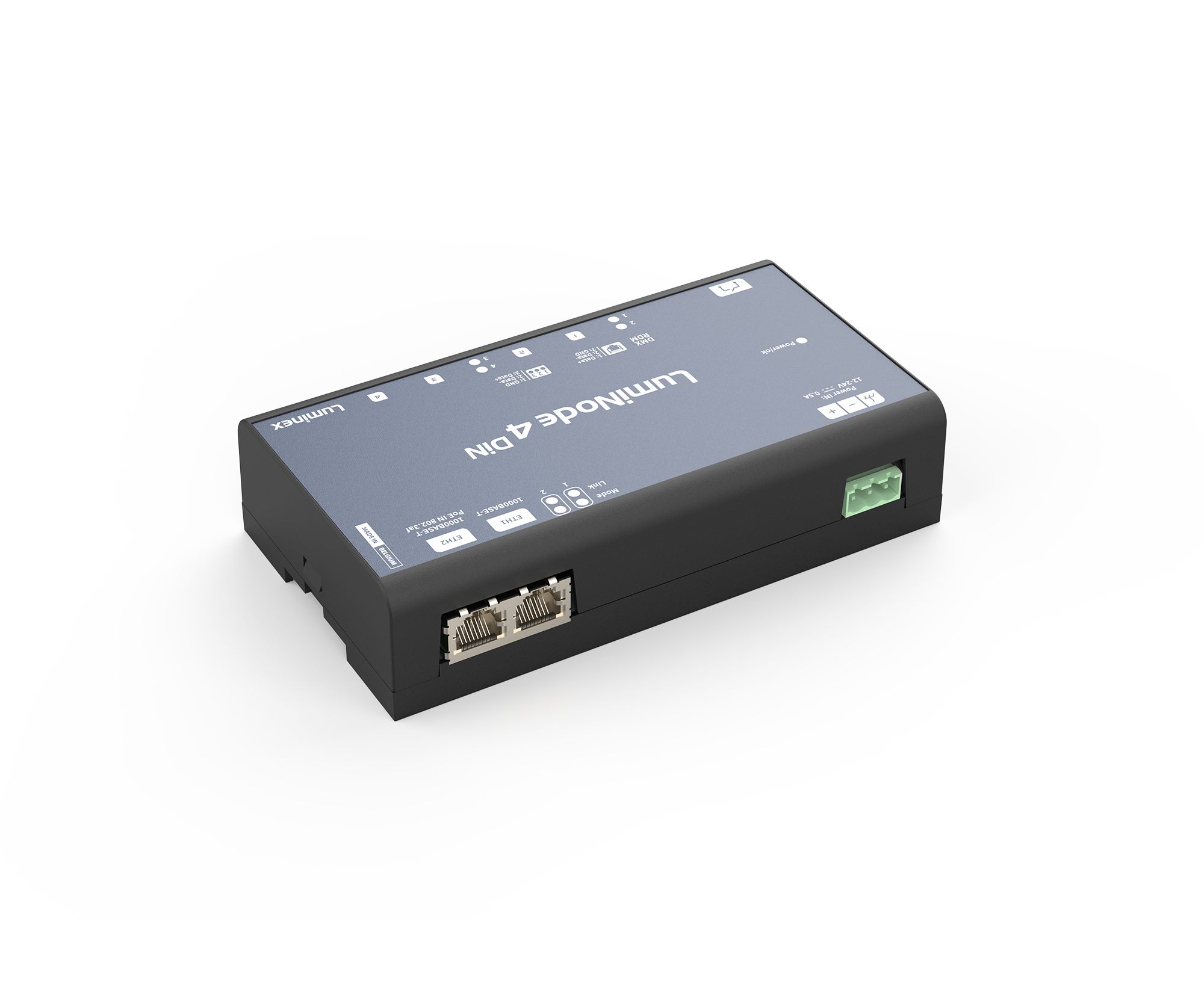

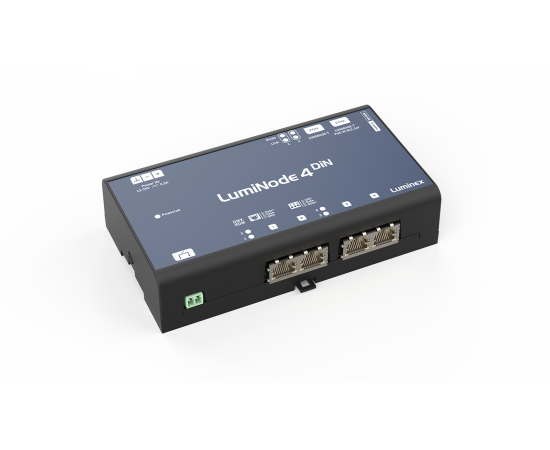

Luminex LumiNode 4 DIN RJ45

DIN rail mountable for fixed install

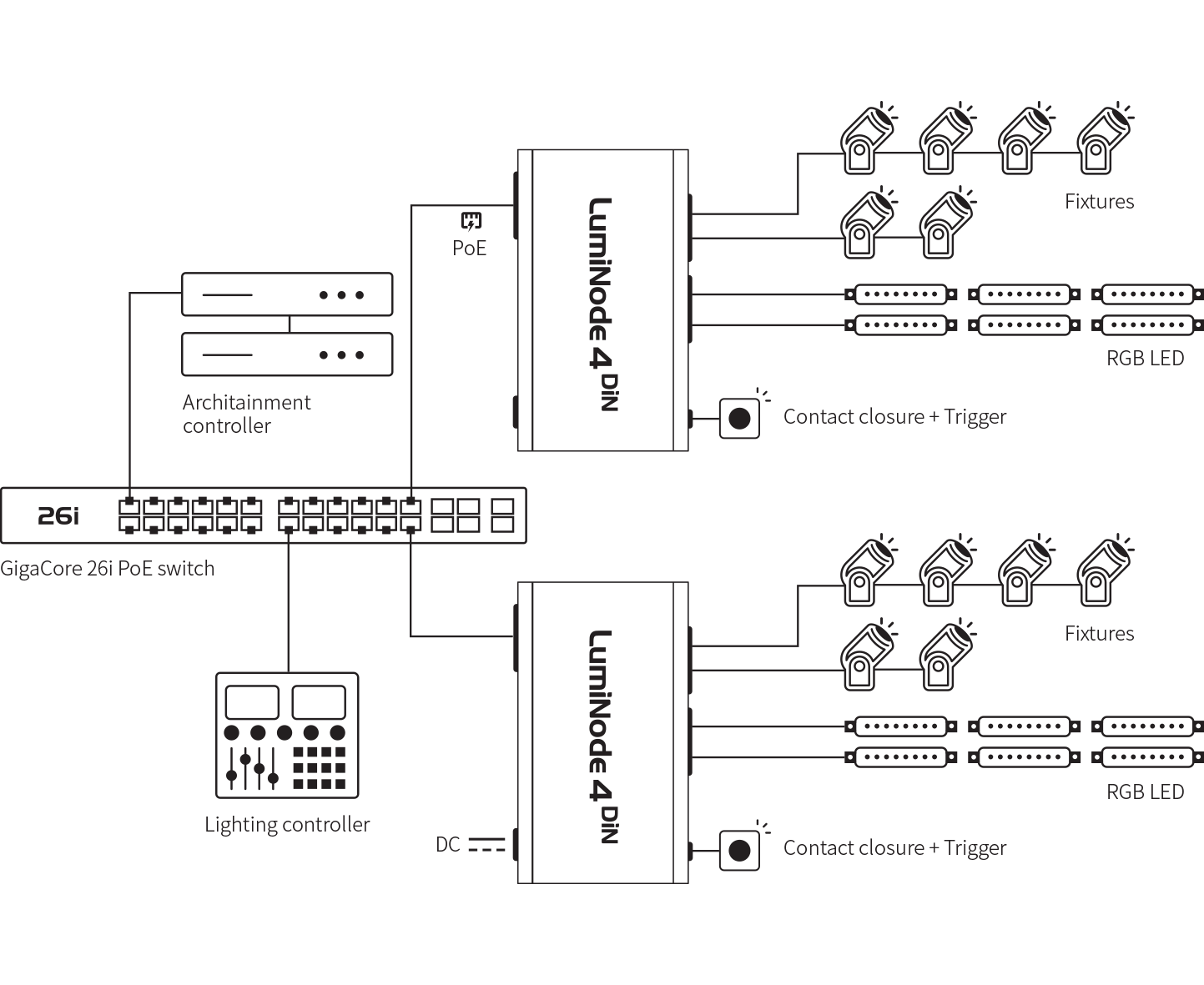

LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardised mounting bracket is ideal for Architainment applications and install projects. For full flexibility the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks.

The unit can be powered over PoE or DC voltage. The second 1Gb RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered).
Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.


LumiNode 4DIN - Descarcare
