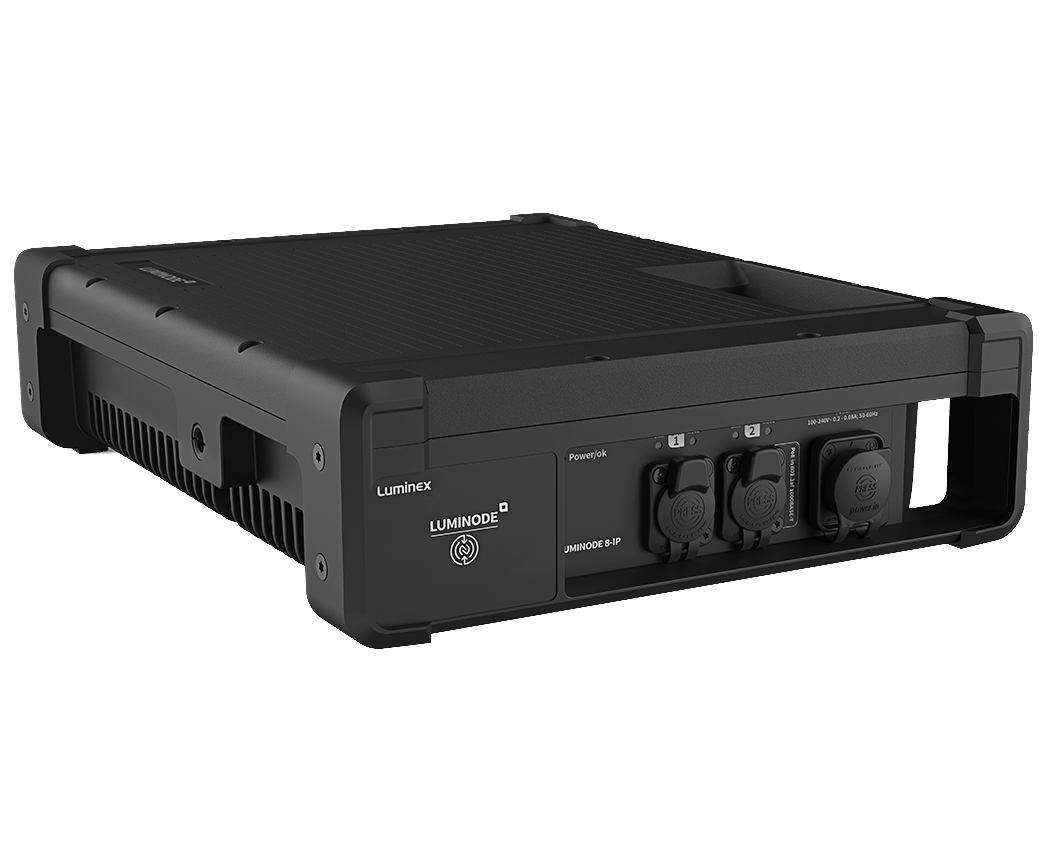

LumiNode 8-IP is designed with an IP65 rated, all metal, robust enclosure,withstanding extreme temperature conditions, making it an ideal solution for outdoor AV installs and live performances. Equipped with 2x 1Gb IP65 ethercon ports and 8 DMX/RDM ports with IP65 5-pin connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output.

All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

LumiNode 8-IP can be managed using any NFC-compatible smart device. With the Araneo app (available on the App Store and Play Store), you can easily read the switch’s status, Groups (VLANs), port settings, and more—simply by tapping your phone.

Conectivity

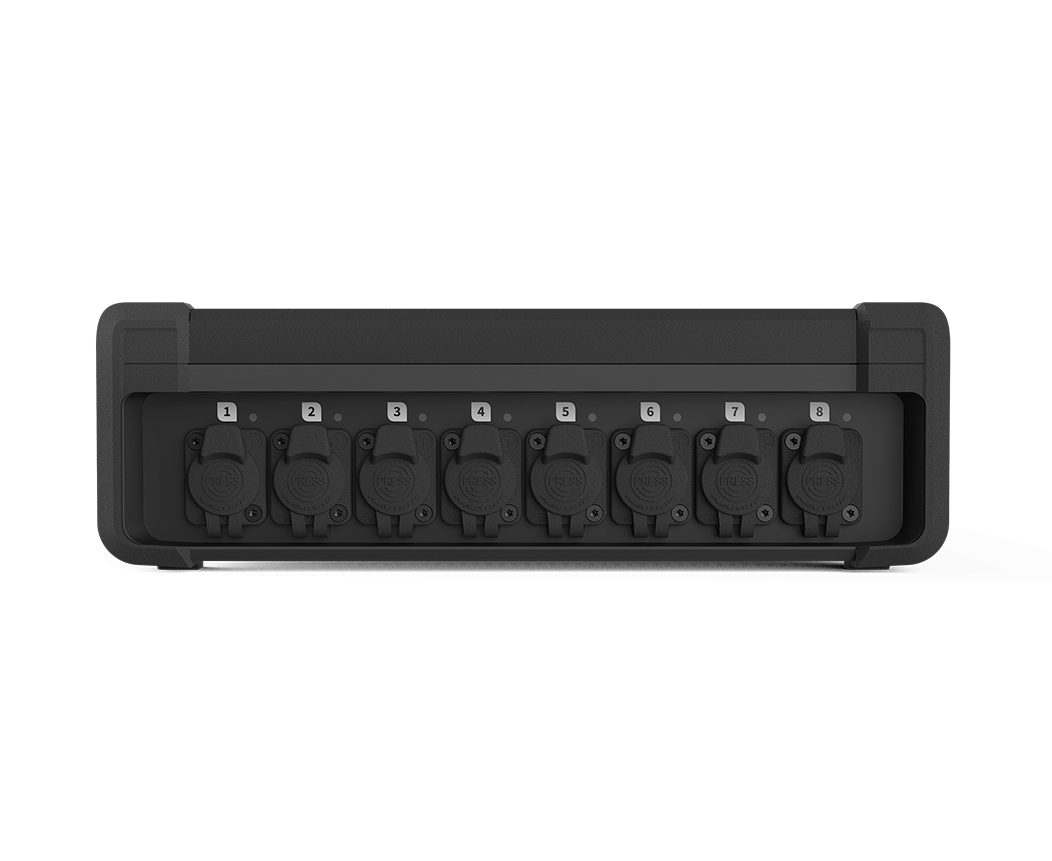

• DMX/RDM connectivity: 8x 5 pin XLR (female) Rugged IP65
• Ethernet connectivity:

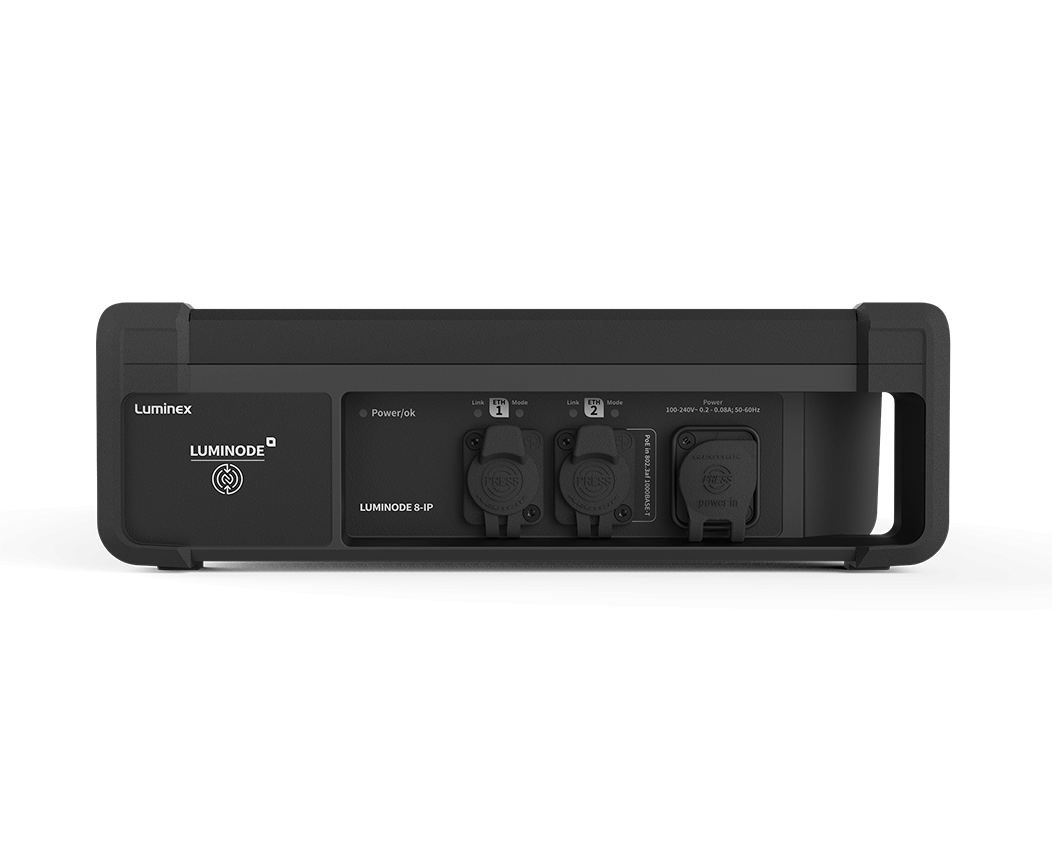

  • 1x gigaBit shielded IP65 ethercon - PoE-802.3af
  • 1x gigabit shielded IP65 ethercon
• Contact closure: No
• Power connectivity:
  • 1x IP65 powercon
  • Ethernet (PoE 802.3af class 0)

DMX Features

• DMX protocols:
  • DMX512 (1986 & 1990)
  • DMX512-A ANSI E1.11
  • RDM ANSI E1.20-2010
• DMX port direction: Input or output (configurable)
• DMX port isolation: Optical and galvanic isolation per port
• DMX timing:
  • Framerate: 10-40fps
  • Break: 176-352µs

Network Features

• Ethernet protocols:
  • Art-Net™ (1-4)
  • sACN ANSI E1.31
  • RTTrPL (BlackTraX)
  • KiNET v1, v2
• Ethernet port speed: 10/100/1000Mbps
• Port sensing:
  • Auto-negociation
  • MDI / MDIX
• Split management interface: Yes
• Groups (VLAN) support: Yes

Key Features

• Process engines: 16
• Merging engine:
  • HTP
  • LTP
  • Backup
  • Switch
  • X-Fade
  • Custom
• Softpatch: Yes
• Master/Limit:
  • Proportional
  • Limit
• Trigger system: Yes
• ReRoute: Yes
• Profile manager: Yes
• Snapshot: Yes
• DMX Redundancy: Yes
• Monitoring software: LumiNet Monitor
• Configuration:
  • Built in Web server
  • Documented Web API
  • NFC app
