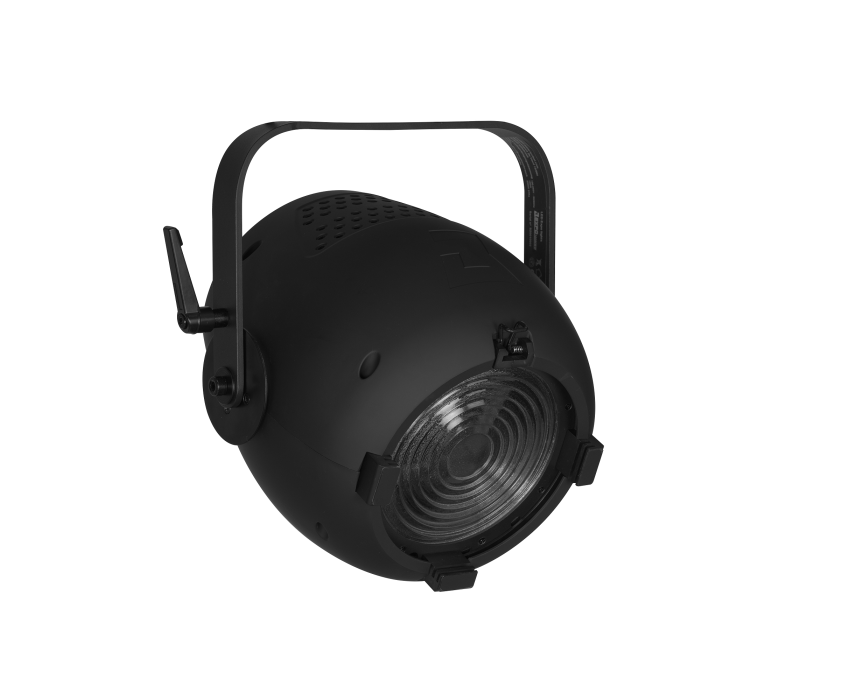

Luxibel B FRESNEL1
B FRESNEL1
Small high power full colour LED fresnel
The B FRESNEL1 is a small high power full colour LED fresnel light specially designed for high demanding customers. It delivers a very powerful and high quality wash light. The specific feature set and nice design makes it the ideal tool for high power applications in exhibitions, museums, shops, and everywhere else where small high power quality light in RGBL is required.
- 120W RGBL
- 96 CRI
- 16-bit dimming
- Optional white cover kit
PHYSICAL
Dimensions (WxHxD)
241 x 292 x 271 mm
Packaging dimension (WxHxD)
300 x 380 x 340 mm
Nett weight
4,38 kg
Gross weight (1 piece)
5,18 kg
MOUNTING OPTIONS
Hanging
3x M12 hole
Standing
N/A
2nd suspension/safety wire
1x eye in back of the unit to pass the carabiner
CONTROL
Menu control
TFT display with 4 buttons
Control
DMX512, manual
In/Link
XLR 5 pin
DMX mode
5/12/13 channels
Dimmer mode
16-bit dimming
Zoom
Manual
Movement
One hand tilt locking
OPTICAL
Lamp type
LED fresnel
Beam angle
15°-60°
Colours
2.800K-5.800K
Refresh rate
Adaptable 600 Hz - 4.000 Hz
Strobe
0-25 Hz
CRI
96 RA
ELECTRICAL
Fixture rated power
120W
LED engine
120W RGBL
Input power
100 - 240V ~ 50/60 Hz - Auto switching power supply
In/Link
PowerCON TRUE1 | max link current: 10A
PHOTOMETRIC DATA
Light output 15° - 0% zoom - 4m
1.200 lux
Light output 15° - 0% zoom - 6m
500 lux
Light output 15° - 100% zoom - 4m
340 lux
Light output 15° - 100% zoom - 6m
140 lux
ENVIRONMENTAL
Cooling
Heat pipe + air cooling
IP rating
IP20
ACCESSORIES
Powercable with bare ends
Included
Barn doors
Optional
Filter Frame
Optional
White cover kit
Optional
