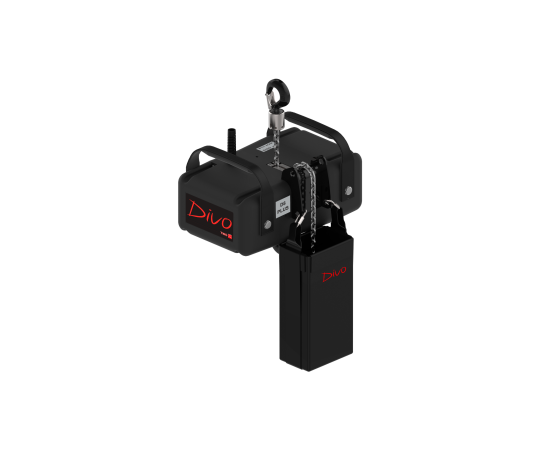

Unirig Divo TWO Compact 500kg D8+
The DIVO TWO compact represents the new generation of compact chain hoists for the entertainment industry.
Designed to deliver maximum performance in a reduced body, it combines robustness, reliability, and advanced technological integration.
Thanks to its new compact design, the DIVO TWO achieves a load capacity of up to 500 kg in D8+ classification, while maintaining compact dimensions that make it ideal for theatrical applications, touring, live events, and permanent installations where every centimeter matters.
The hoist can be equipped with an integrated load cell, safety limit switches, and an encoder, enabling precise motion control and continuous load monitoring. This configuration makes it fully compatible with advanced control systems and applications requiring high operational safety standards.
Designed to deliver maximum performance in a reduced body, it combines robustness, reliability, and advanced technological integration.
Thanks to its new compact design, the DIVO TWO achieves a load capacity of up to 500 kg in D8+ classification, while maintaining compact dimensions that make it ideal for theatrical applications, touring, live events, and permanent installations where every centimeter matters.
The hoist can be equipped with an integrated load cell, safety limit switches, and an encoder, enabling precise motion control and continuous load monitoring. This configuration makes it fully compatible with advanced control systems and applications requiring high operational safety standards.
| Load capacity | 500 kg |
| Lifting speed at 50 Hz | 4m / min |
| Operating voltage | 400V 50 Hz |
| Protection Class | IP 55 DIN 40050 |
| Motor power at 50 Hz | 0.37 kW |
| FEM Class | 2m |
| DC braking system | 2 brakes |
| Noise level | <67.5 dB (full load) |
| Load wheel | 5 pockets |
| PEWAG® Load chain | 5.4x15 mm |
| Number of chains | 1 |
| Chain weight | 0.67 kg / m |
| Weight of the body | 26 Kg |
| Type of control | Direct Control |
| Type of connector | Red Plug | 400V EEC 16A - 3P + T |
| Climbing use | permitted |
| Safety factor | 8: 1 |
| Load cell | Optional |
| Stromag® Limit Switch with 4 switches | Optional |
| Encoder | Optional |
