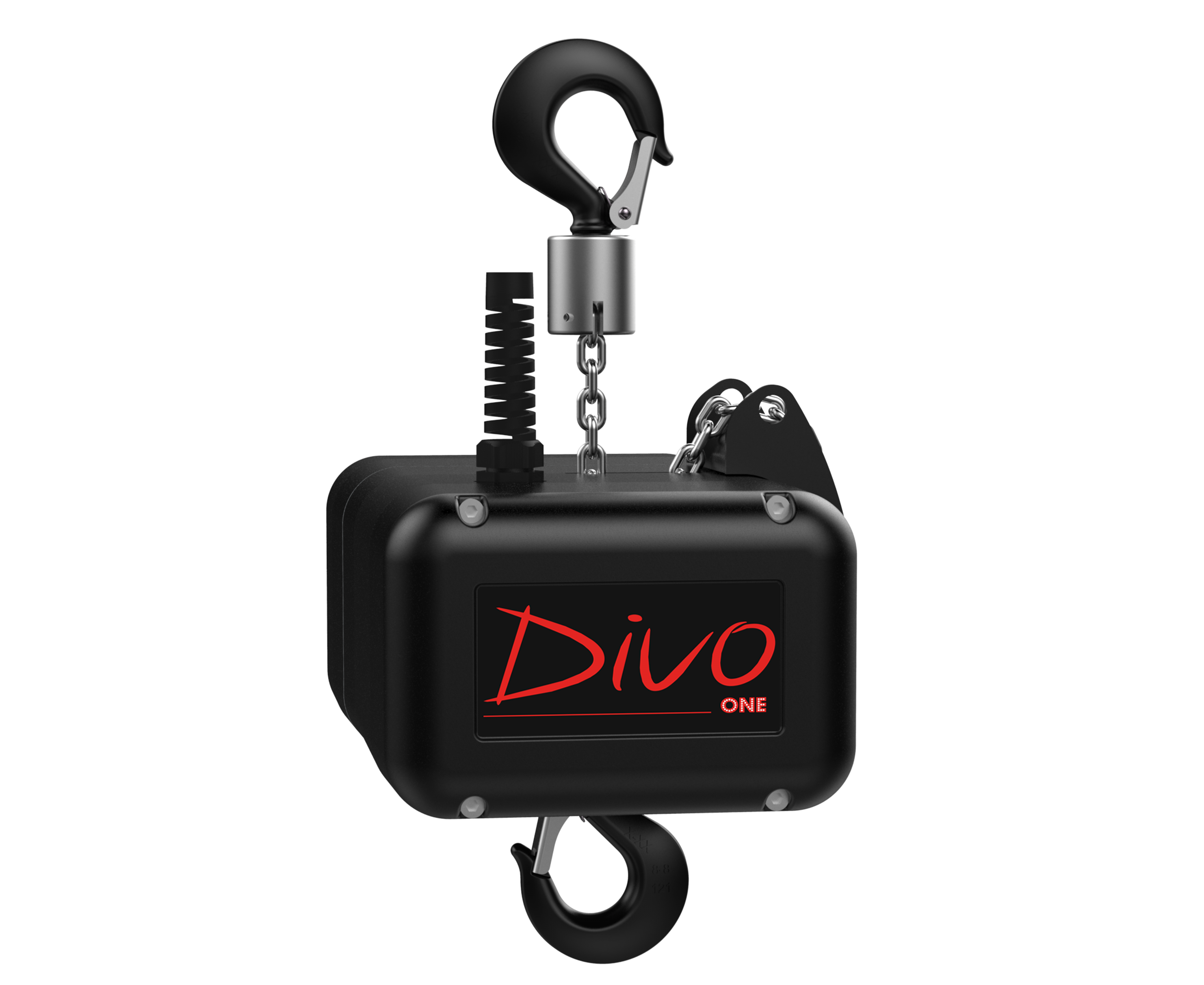

D8 Divo One 320Kg - 4 m / min

  • Pune o întrebare

320 D8 - 4 m / min

Code: DSB320

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline


TECHNICAL SPECIFICATIONS
Load capacity 320 kg
Lifting speed at 50 Hz 4m / min
Operating voltage 400 V - 50 Hz
Protection Class IP 55 DIN 40050
Motor power at 50 Hz 0.18 kW
FEM Class 1Bm
AC braking system 1 brake
Noise level <67.5 dB (full load)
Load wheel 5 pockets
RUD® Load chain 4x12 mm
Number of chains 1
Chain weight 0.36 kg / m
Weight of the body 11 kg
Type of control Direct Control
Type of connector | Red Plug 400V EEC 16A - 3P + T
Climbing use permitted
Safety factor 5: 1
Handles optional



Code Description

DSB320-05 Divo ONE 320 D8 4m / min, 5m of galvanized chain and chain bag
DSB320-10 Divo ONE 320 D8 4m / min, 10 m of galvanized chain and chain bag
DSB320-15 Divo ONE 320  D8 4m / min, 15m of galvanized chain and chain bag
DSB320-18 Divo ONE 320 D8 4m / min, 18m of galvanized chain and chain bag
DSB320-20 Divo ONE 320 D8 4m / min, 20m of galvanized chain and chain bag
DSB320-24 Divo ONE 320 D8 4m / min, 24m of galvanized chain and chain bag


DSB320-05B Divo ONE 320 D8 4m / min, 5m of black chain and chain bag
DSB320-10B Divo ONE 320 D8 4m / min, 10m of black chain and chain bag
DSB320-15B Divo ONE 320 D8 4m / min, 15m of black chain and chain bag
DSB320-18B Divo ONE 320 D8 4m / min, 18m of black chain and chain bag
DSB320-20B Divo ONE 320 D8 4m / min, 20m of black chain and chain bag
DSB320-24B Divo ONE 320 D8 4m / min, 24m of black chain and chain bag
