D8 Divo Three 1000Kg COMPACT - 4m / min

  • Pune o întrebare

1000 D8 COMPACT - 4m / min

Code: DLA1000

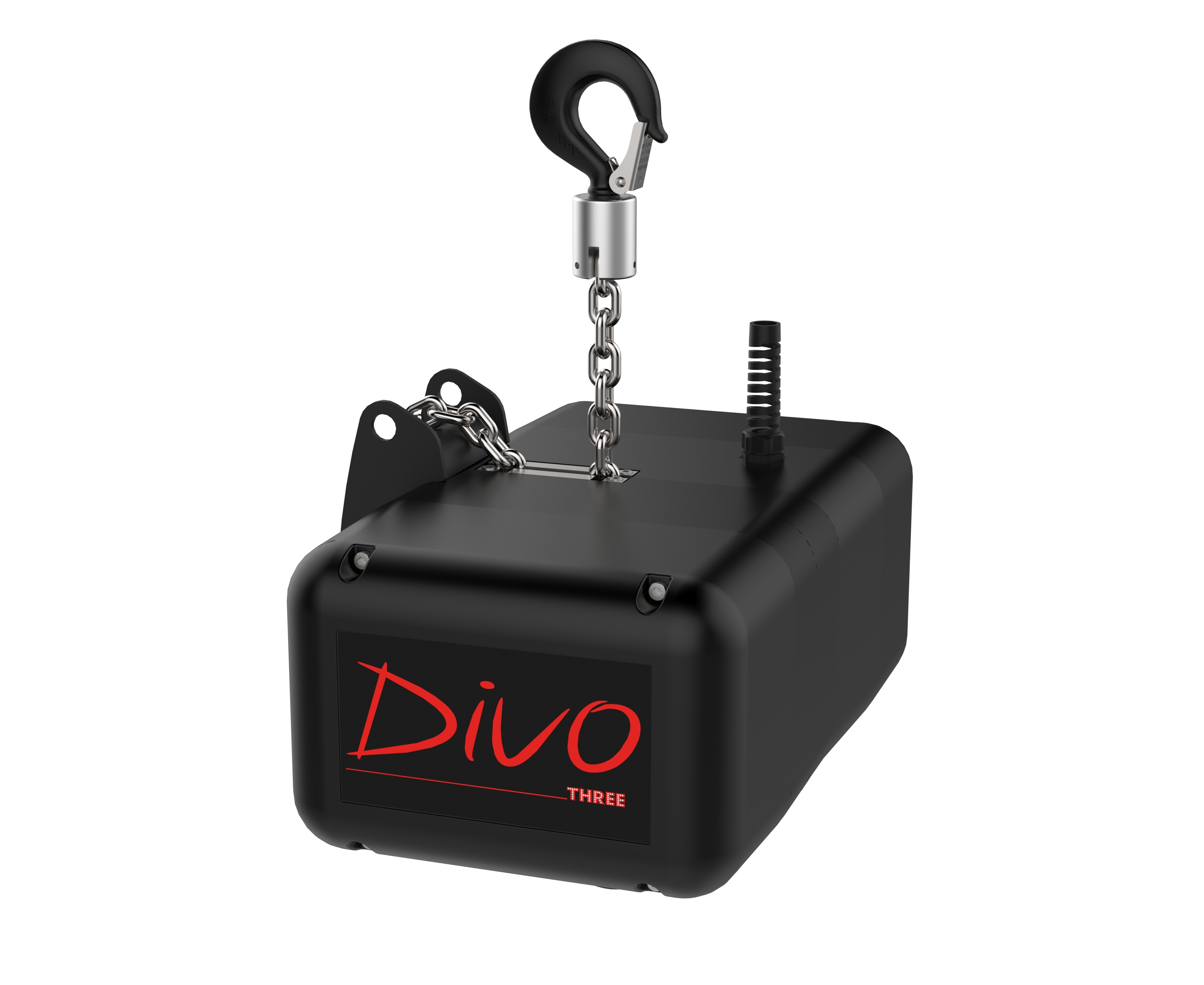

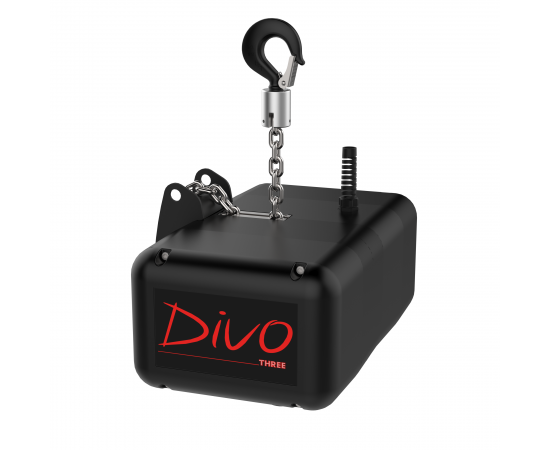

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline


TECHNICAL SPECIFICATIONS
Load capacity 1000 kg
Lifting speed at 50 Hz 4m / min
Operating voltage 400V 50 Hz
Protection Class IP 55 DIN 40050
Motor power at 50 Hz 0.72 kW
FEM Class 1Bm
DC braking system 1 brake
Noise level <67.5 dB (full load)
Loading wheel 5 pockets
RUD® Load chain 6,3x19 mm
Number of chains 1
Chain weight 0.86 kg / m
Weight of the body -
Type of control Direct Control
Type of connector | Red Plug 400V EEC 16 A - 3P + T
Climbing use permitted
Safety factor 5: 1
End Stroom Stromag® with 4 switches Optional



DLA1000-05 Divo THREE 1000 D8 COMPACT - 4m / min, 5m of galvanized chain and chain bag
DLA1000-10 Divo THREE 1000 D8 COMPACT - 4m / min, 10m of galvanized chain and chain bag
DLA1000-15 Divo THREE 1000 D8 COMPACT - 4m / min, 15m of galvanized chain and chain bag
DLA1000-18 Divo THREE 1000 D8 COMPACT - 4m / min, 18m galvanized chain and chain bag
DLA1000-20 Divo THREE 1000 D8 COMPACT - 4m / min, 20m of galvanized chain and chain bag
DLA1000-24 Divo THREE 1000 D8 COMPACT - 4m / min, 24m galvanized chain and chain bag


DLA1000-05B Divo THREE 1000 D8 COMPACT - 4m / min, 5m of black chain and chain bag
DLA1000-10B Divo THREE 1000 D8 COMPACT - 4m / min, 10m of black chain and chain bag
DLA1000-15B Divo THREE 1000 D8 COMPACT - 4m / min, 15m of black chain and chain bag
DLA1000-18B Divo THREE 1000 D8 COMPACT - 4m / min, 18m black chain and chain bag
DLA1000-20B Divo THREE 1000 D8 COMPACT - 4m / min, 20m black chain and chain bag
DLA1000-24B Divo THREE 1000 D8 COMPACT - 4m / min, 24m black chain and chain bag
