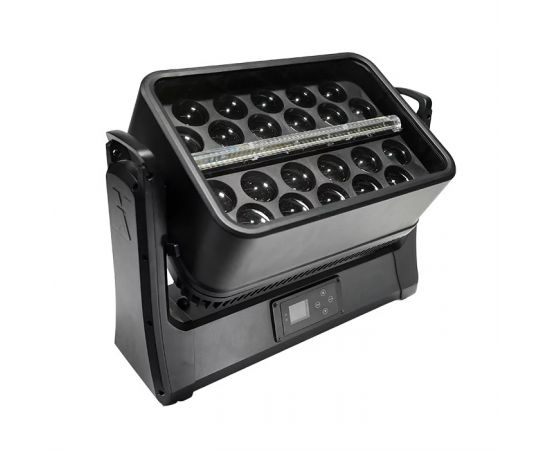

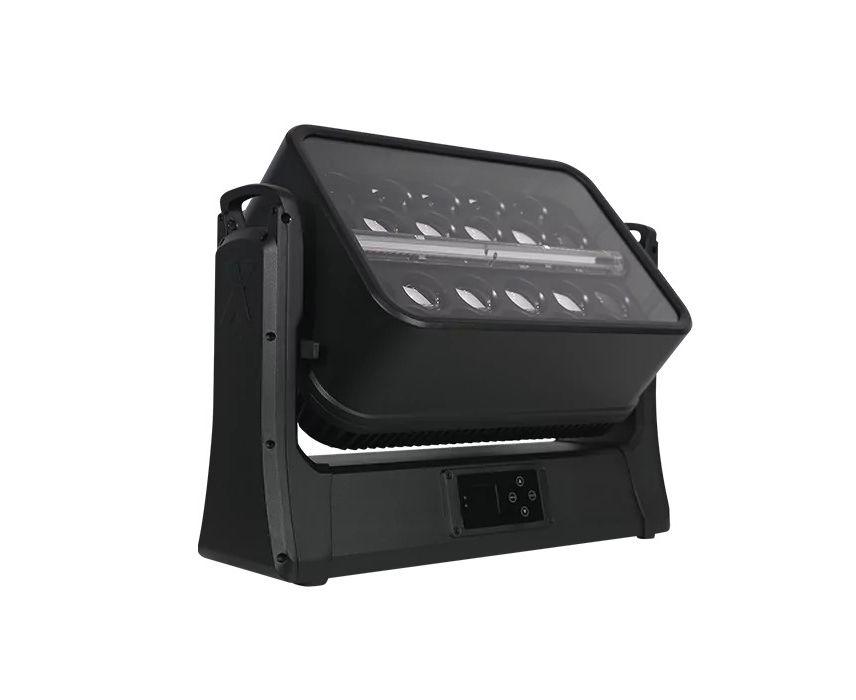

The AURORA BLAST combines 22 high-performance 40-watt RGBW LEDs with 144 5-watt CW LEDs for rich washes and intense strobes. Its IP65-rated construction thrives in demanding environments, while single dot LED control and a segmented strobe bar with 12 controllable zones enable dynamic, thrilling designs. With versatile cooling modes (Silent, High, Auto), a motorized 4° to 45° zoom and a motorized 200° tilt, it adapts seamlessly to any creative vision. The AURORA BLAST’s stackable configuration allows for multi-dimensional displays, making it a powerful tool for groundbreaking lighting applications.
Specs
Physical
| Dimensions (WxHxD) |
410 x 520 x 201 mm | 16.1 x 20.5 x 7.9 in |
| Nett weight |
23.1 kg | 50.93 lbs |
| Material |
Aluminium |
Mounting options

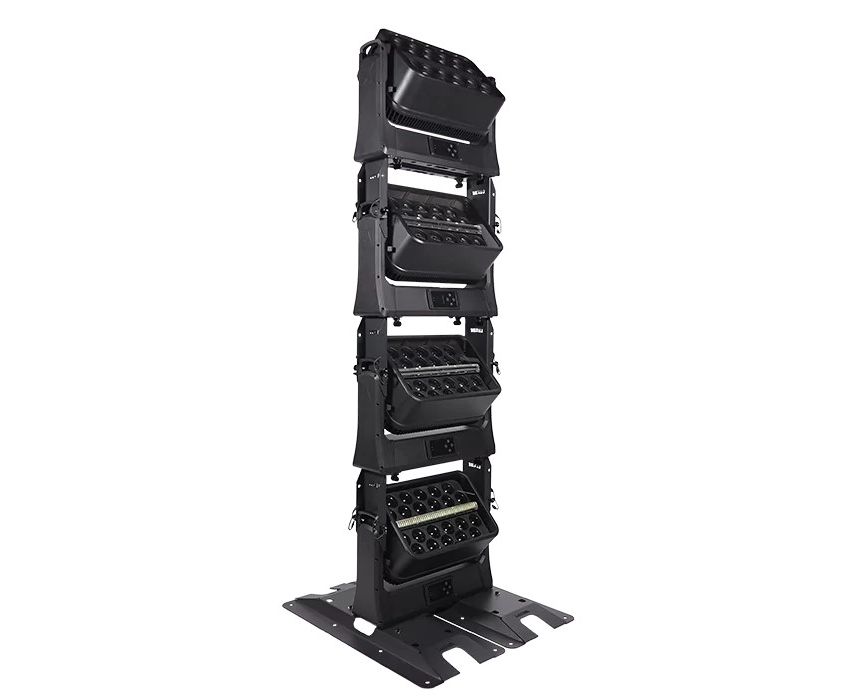

| Stacking |
Up to 4 units |
| Hanging |
2x Omega brackets with 1/4-turn quick locks / integrated mounting locations / optional stacking set |
| Standing |
Optional baseplate and stacking set |
| 2nd suspension / safety wire |
1 safety wire included for maximum 4 stacked units |
Optical
| LED Engine |
22 x 40W RGBW LED |
| Strobe bar |
144x 5W CW |
| Beam angle |
4°-45°, motorized zoom |
| CCT |
2.800K - 8.000K |
| CRI |
>93 |
| TLCI |
88 |
| Strobe frequency range |
0 Hz - 25 Hz |
| Dimming curves |
Linear, Square Law, Logarithmic, S curve |
| Dimming control |
16-bit |
| Green correction |
+- green correction |
Control
| Display |
LCD screen / 4x touch buttons |
| Control options |
DMX-512, Integrated CRMX (=Wireless DMX), RDM, Art-Net & sACN |
| In/link |
DMX 5-pin in, DMX 5-pin out, RJ45 in, RJ45 out, USB (Service port) |
| Tilt movement |
Motorized tilt 200° |
| Zoom movement |
Motorized zoom 4°-45°, 2 segments |
| Single dot control |
22 x 40W RGBW LED |
| Strobe control |
12 segments |
| Pre-programmed effects |
75 |
| LEE filter colors |
63 |
| DMX Mode |
8 / 14 / 35 / 120 |
Electrical
| Fixture rated power |
1700W |
| Input power |
110-230V, 50-60 Hz (auto-scaling) |
| Power consumption |
1600W |
| In/link |
Powercon TRUE1 |
Environmental
| Certification |
CE / UKCA |
| IP Rating |
65 |
| Cooling |
Auto, High, Silent |
| Maximum surface temperature |
80°C | 176° F |
| Minimum operating temperature |
-10°C | 14° F |
| Maximum ambient temperature |
40°C | 104°F |
